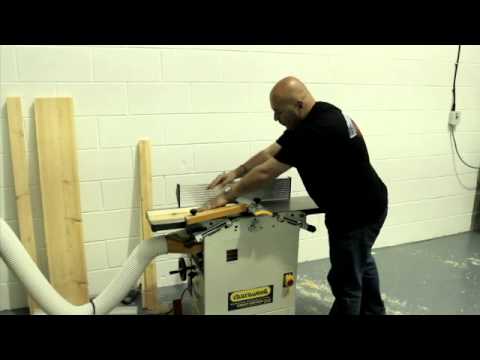

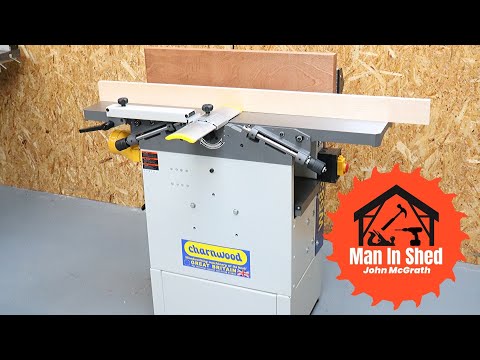

Charnwood 10” x 7” Planer Thicknesser

Product Code:W583
Barcode: 5060281690340

£1,199.00 (£999.17 Excl. VAT)

In stock

Product Description

A solid and well finished planer thicknesser for the busy workshop.

  • Precision Ground Cast Iron Beds
  • 2hp Induction Motor
  • 3 Knife Cutterblock for Superior Finish
  • 10” Planing Capacity
  • 10” x 7” Thicknessing Capacity
  • Rubber Coated Outfeed Roller
  • 100mm diameter Dust Extraction Outlet
  • Optional Wheel Base Available

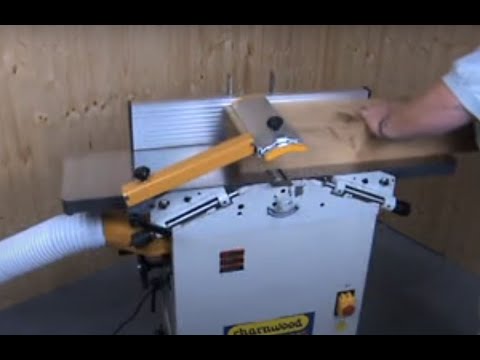

Precision ground cast iron beds and a long tilting fence which can be positioned at any point across the table make this machine a delight to use. The 3 knife cutterblock is powered by a 2hp induction motor and is capable of a cut up to 5mm deep in a single pass.

To gain better visibility and access for thicknessing, both of the planing beds are hinged and swing out of the way, without using any tools. A dust hood / cutter guard is then swung into position and the conversion to Thicknesser is complete.

The feed roller drive, which features a rubber outfeed roller, can be disengaged during planing operations to save motor power and general wear on the machine.

Supplied with 3 knives, 100mm dust extraction outlet, 4 adjustable feet, 1.6m power cable and UK 3 pin plug.
Our planer thicknesser will run off any standard 13amp supply.



Charnwood W583 Specification

Surfacing width 250mm (10″)
Length of surfacing tables 1085mm
Maximum depth of cut 5mm
Fence tilt 90 – 45 degrees
Table height 856mm
Thicknessing capacity 5-195mm (1/4″-7″)
Length of thicknessing table 600mm
Feed speed 5.5m/min
Maximum depth of cut 2.5mm
Cutterblock speed 4000rpm
Number of knives 3
Motor ( induction) 1500w (2hp)
Assembled Dimensions (WxDxH) 1100mm x 780mm x 1050m
Assembly Time Required 45 Minutes (Needs 2 People)
Weight 150kg
Shipping Crate Dimensions (WxDxH) 1130 x 500 x 740mm
Minimum Door Access Width 450mm
Rating Trade
Product Guarantee 5 Years



It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
