Charnwood 10” Professional Cast Iron Table Saw

Product Code:W650
Barcode: 5060281690524
(2 customer reviews)

£1,399.00 (£1,165.83 Excl. VAT)

In stock

Product Description

For the small professional workshop this new cast iron table saw will be the perfect fit.

  • Quiet 3hp Induction Motor with Brake
  • Cast Iron Precision Ground Table
  • Extension Tables as Standard Equipment
  • Finely Adjustable Rip Fence
  • Sliding Carriage as Standard Equipment
  • Separate Handwheels for Blade Adjustment
  • 100mm Dust Extraction Outlet
  • Optional Wheel Kit

The main table is precision ground cast iron to give a flat surface that will last forever. The surface area is further increased with the addition of 2 steel extension tables offering greater support when working with larger panels and boards.

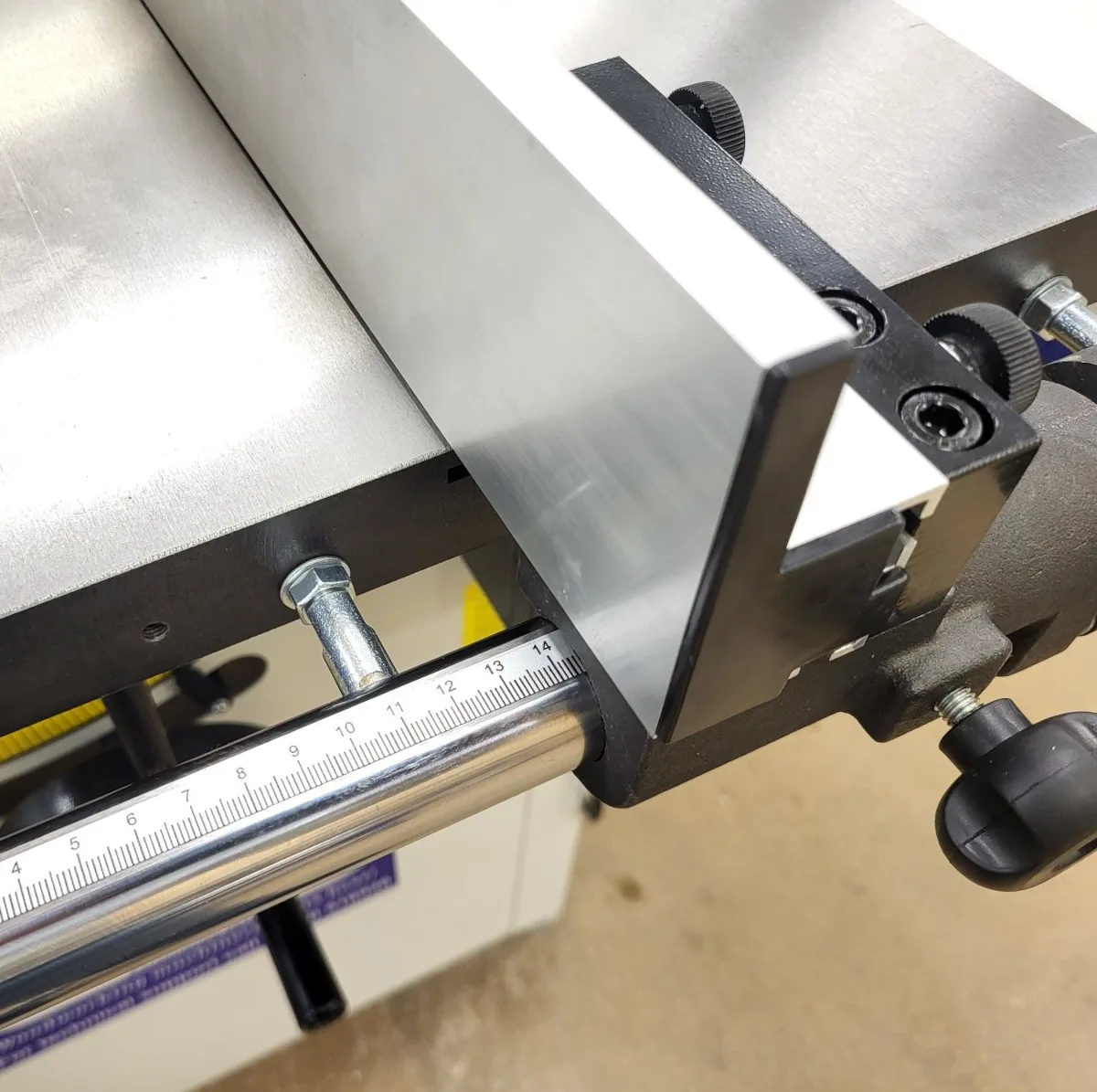

The guide fence for ripping operations slides smoothly along a solid steel bar with a measuring scale marked out in millimetres. The fence itself can be used in two positions, the second position allows for very thin cuts to be made in thin materials without obstructing the blade guard. A great feature of the fence system is the addition of a micro adjuster which allows accurate small adjustments to be made when setting the position of the fence.

The sliding mitre fence is adjustable to 60 degrees in each direction. It has preset stops to locate it accurately at 45 degrees and 90 degrees. A sacrificial fence can be easily mounted using the fixing holes provided.

On the left hand side of the saw is the sliding crosscut carriage. The table is again made from cast iron and precision ground for a durable flat surface. The table runs on four sealed for life bearings along an aluminium guide track. The fence itself can be locked at any angle from 90 to 45 degrees, and there is a positive stop to ensure the fence returns back to the 90 degree position. A work clamp ensures timber stays locked in position during the cut. A flip-over length stop for accurate repeat cutting completes the carriage assembly.

The power is generated from a 2200w (3 hp) induction motor which gives a low noise level and will run from any standard 13amp, 240v power supply.
Setting the sawblade angle and height is done using two separate hand wheels. A large easy to read scale on the front face of the machine allows accurate bevel angles to be set.

Efficient dust extraction is included as standard. Dust is collected from the back of the saw guard and a hose transfers it to the rear of the machine. Underneath the table is a hood which collects more dust and tranfers it to the same collection point. A single extractor hose connection point of 100mm diameter is provided at the rear of the machine.

The table saw is supplied with four adjustable feet for levelling on an uneven surface. For anybody needing to move the saw around the workshop our universal wheel base, W522 is the ideal companion.

Supplied with 36 tooth TCT sawblade, push stick, rip fence, mitre guide, 1.8m power cable and UK 3 pin plug.

Charnwood W650 Specification

Main Table Size 750mm x 1000mm
Maximum Ripping Width 605mm
Crosscut Table Size 400mm x 180mm
Maximum Crosscutting Width 550mm
Max. Using Alternate Assembly 700mm
Blade Tilt 90 – 45 degrees
Cutting Depth at 90 degrees 80mm
Cutting Depth at 45 degrees 56mm
Blade Diameter 250mm
Blade Bore 30mm
Work Table Height 830mm
Motor (induction) Braked 2200w (3hp) / 240v
Mitre Guide T-Slot Width 15/19mm
No-load Blade Speed 4000rpm
Minimum Blade Width (Kerf) 3.0mm
Assembled Dimensions (WxDxH) 1440mm x 1070mm x 1120mm
Assembly Time Required 60 Minutes (Needs 2 People)
Shipping Dimensions 1 (WxDxH) 750 x 720 x 500mm
Shipping Dimensions 2 (WxDxH) 550 x 450 x 110mm
Shipping Dimensions 3 (WxDxH) 1040 x 180 x 80mm
Minimum Door Access Width 730mm
Db (Without Load/With Load) 81Db/89.5Db
Weight (Gross / Net) 147 / 125Kg
Rating Trade
Product Guarantee 5 Years
Minimum Door Opening Required: Width In Crate 720mm
Minimum Door Opening Required: Width Out of Crate 710mm

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the saw guard and takes it to the single 100mm diameter hose connection point at the back of the machine.

Please note: It is not possible to use a stacked dado set with this saw.



2 reviews for Charnwood 10” Professional Cast Iron Table Saw

  1. Charley Streather

    I can’t recommend the W650 10” table saw highly enough. Compared with the table saws I’ve owned in the past this is in a league of its own and has opened up a whole new world of woodworking for me.
    I hummed and ahh-ed a bit before I got one, it’s a lot of money for a saw, but I can only say it was worth it for me.
    Delivered next day after ordering it at the Charnwood showroom, it took me about 3 hours to assemble and align it to my satisfaction. Only having a garage as a workshop, I was so glad I also got the wheeled base for it because once assemble it’s a heavy lump.
    The sliding table and adjustment wheels are solid and smooth as silk to operate and make using the saw a pleasure, and although not ‘quiet’, it’s much quieter than any I’ve had before. All in all, if you’re reading this you’re considering getting one. My advice is to do it now, you won’t be disappointed. Best wishes, Charley.

  2. Ross Addison

    Great product unbelievable service ordered at Yandles and was told it would be 5-7days but after getting home the phone range and they delivered the next day, wheelbase is a must and the blades are fine for general use, if you take some time to get the set up right the cross cutting function on the carriage is superb and has already replaced my need for a separate mitre saw as this is much more accurate especially on wider boards, fence is excellent and have used the micro adjustment more than I thought I would, only gripe would be the blade tilt won’t go to 45 degrees it stops at about 42, and the right hand extension table is very difficult to get perfectly level with the cast iron top, it sags on one corner of mine slightly and will undo and put a support in to level the extension table at some point, Charnwood machines look very slick in the workshop and feel extremely well made with great precision have just got the router table and plan many more Charnwood purchases going forward.
