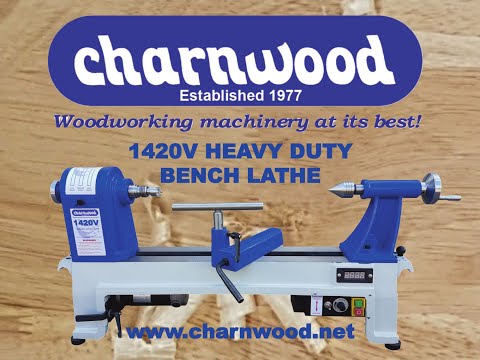

Package Deal: Charnwood 1420V Lathe & VIPER3 Chuck

Product Code:1420VP
Barcode:

£734.00 (£611.67 Excl. VAT)

In stock

Product Description

Package Deal – Save £20

Package consists of : 1420V Lathe & VIPER3R Chuck

  • Electronic Variable Speed Control
  • Digital Speed Read Out
  • Reverse Direction
  • Powerful & Quiet 750w (1hp) Motor
  • High Quality Drive and Tail Centres
  • Cam Action Tool Rest Banjo
  • Steel Tool Rest Bar
  • Built In 24 Position Indexing
  • Hollow head and tail stock

With full cast iron construction this bench lathe is 40% heavier and more stable than your average bench lathe.

Using a large 1hp motor allows the electronics to achieve a lowest speed of only 250rpm, with enough torque to be useful. The actual spindle speed is shown on a clear digital display.

The tool rest and tailstock both slide smoothly along the bed and are securely locked with a large cam action lever.

The tool rest itself is a round steel bar with optional lengths and shapes available, courtesy of Robert Sorby.

Supplied with drive centre, tail centre, 100mm diameter faceplate, knock out bar, adjustable rubber feet, 1.9m power cable and UK 3 pin plug.



Charnwood 1420V Specification

Max. spindle length (without centres) 500mm (20″)
Max. spindle length (with centres fitted) 430mm (17″)
Distance over bed (Max. bowl diameter) 350mm (14″)
Distance over tool rest (Max. spindle diameter) 250mm (10″)
Tool rest length 150mm (6″)
Tool rest stem diameter 25mm
Motor (DC carbon brush) 750w (1hp), 240v
Speed range 250 – 3550rpm
Spindle thread size M33 x 3.5 (Din800)
Spindle tapers MT2
No. of indexing positions 24 (every 15 degrees)
Hollow headstock diameter 10mm
Hollow tailstock diameter 8mm
Dimensions (WxDxH) 950 x 370 x 500mm
Weight 57kg
Assembly Time Required 10 Minutes
Rating Hobby
Product Guarantee 5 Years

Optional Floor stand Available.



VIPER3R Scroll Chuck

The best selling size from the Charnwood Viper range. A 4″ sized scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Midi sized lathes and upwards. The fully enclosed design prevents the build up of chips and dust inside the gear mechanism.

The standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned.
The chuck fits directly onto lathes with headstock thread size M33 x 3.5tpi. for all other sizes an optional insert is required.

We also include a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.

Supplied with standard dovetail jaws, wood screw, T-bar for locking the jaws and T-handled hex key for swapping the jaws.

We have an extensive range of optional jaws and accessories available for the Viper range of chucks.

Charnwood VIPER3R Specification

Direct Mounting Thread M33 x 3.5
Chuck Body Diameter 95mm
Standard Jaws Expand from 45mm to 80mm
Standard Jaws Contract from 67mm to 32mm
Jaw Travel 35mm
Thread Depth 32mm
Weight 1900g
Rating Trade
Warranty 1 Year
