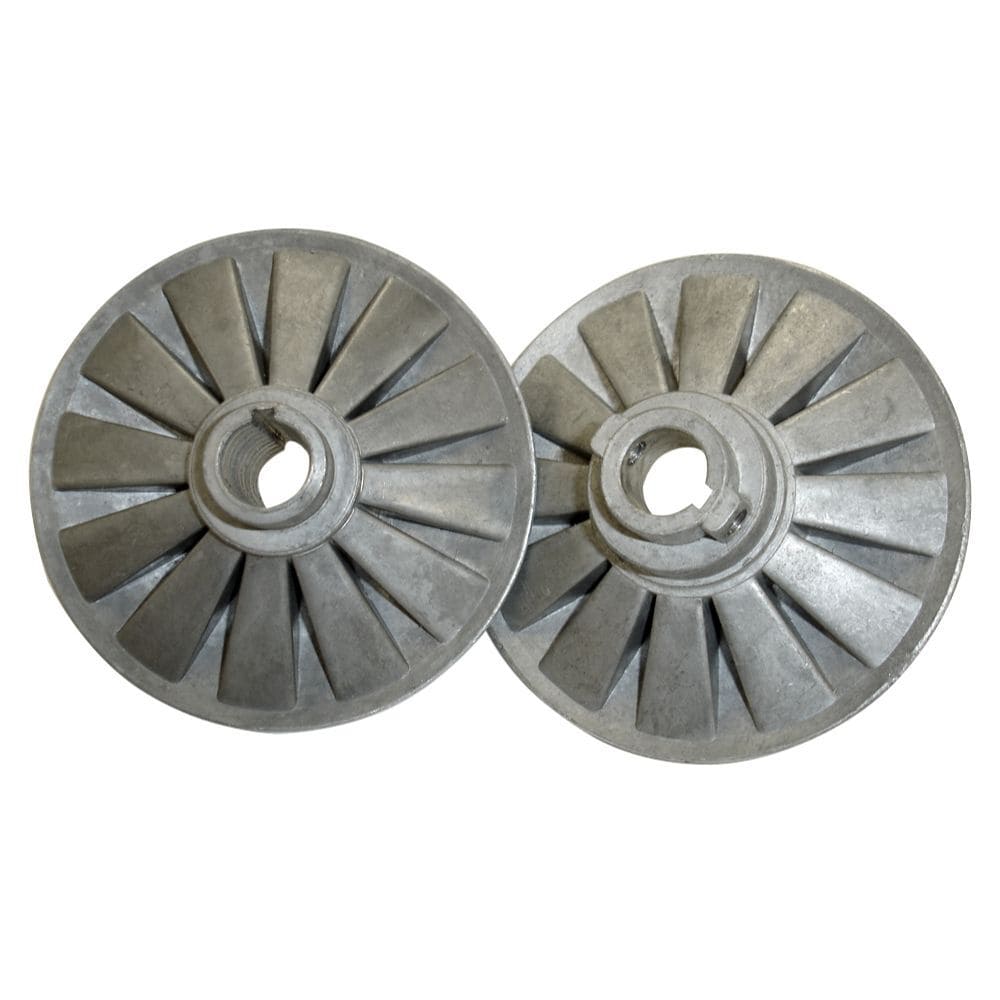

Charnwood W813#29/30SET Motor Pulley Set for W812, W813 & W870 Lathes

Product Code:W813#29/30SET
Barcode:

£45.00 (£37.50 Excl. VAT)

In stock

A Pair of replacement pulleys for the mechanical variable speed drive.

This pair fits onto the motor spindle. Part number 29 & 30 in the owners manual.

It is always recommended to replace these as a pair even if only 1 half shows signs of wear or damage.

(Please note: these pulleys are different to the pair fitted onto the headstock spindle)

Overall Diameter – 105mm
Bore Diameter – 16mm

Compatible With:

  • Charnwood W812
  • Charnwood W813
  • Charnwood W870

To the best of our knowledge, these pulleys are also compatible with the following similar machines:

  • Delta 46-700
  • Draper WTL95
  • SIP 01938
  • Fox F46-717A
  • Axminster AWVSWL900
  • Scheppach DMS900
  • Draper WTL1100
  • Scheppach LATA 5.0
  • SIP 01940
  • Axminster AC370WL
