High Filtration Vacuum Extractor

Product Code:W680

Product Description

DISCONTINUED JULY 2016 – REPLACED BY MODEL DC50

This item is no longer available to order. A limited range of spare parts are still available. Contact our sales office to order.
Any accessories listed in the ‘Related Products’ section below, are still available to order online.

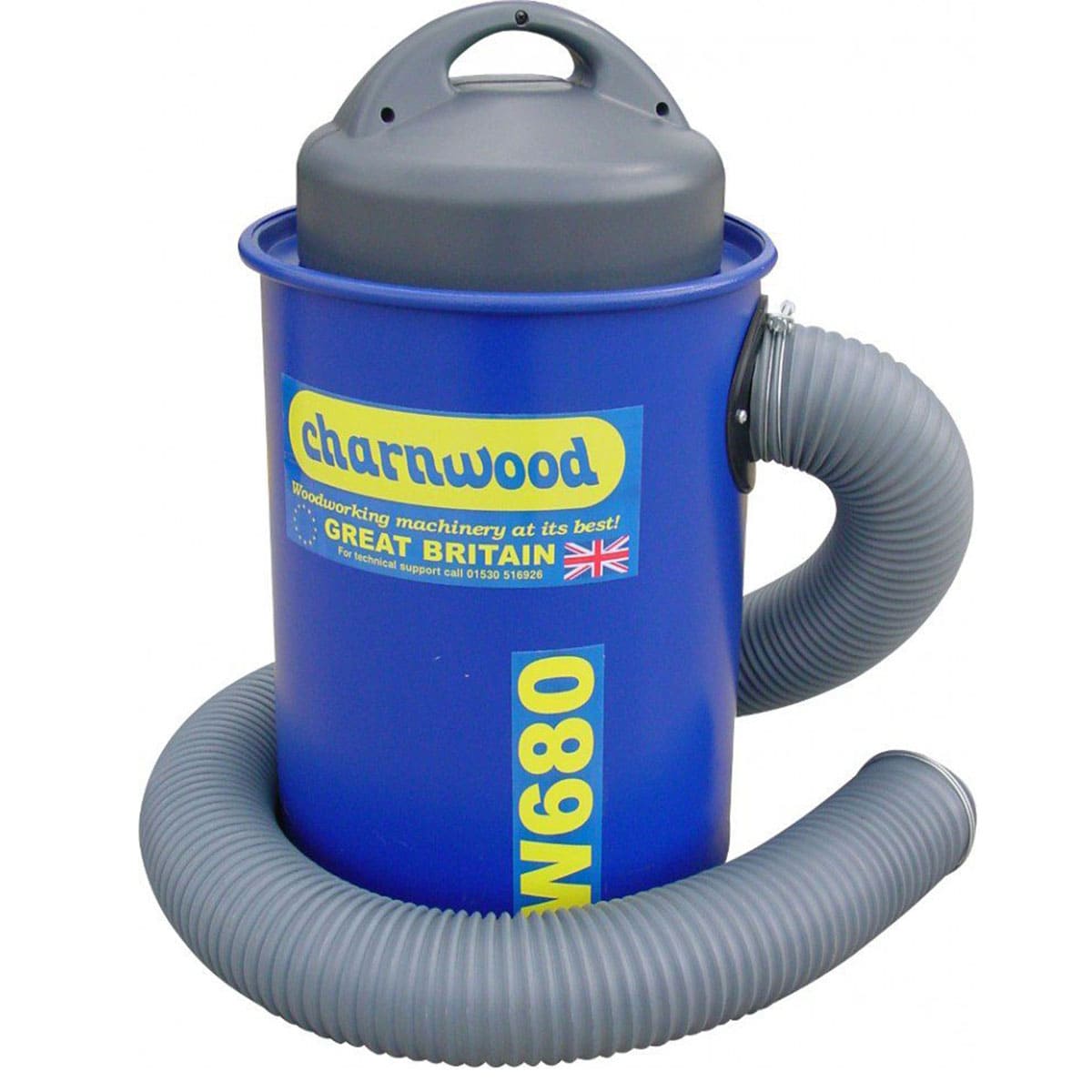

High filtration vacuum extractor.

  • Filters Down to 0.5 Microns
  • 50 Litre Collection Capacity
  • No Loss of Power with Small Diameter Hoses

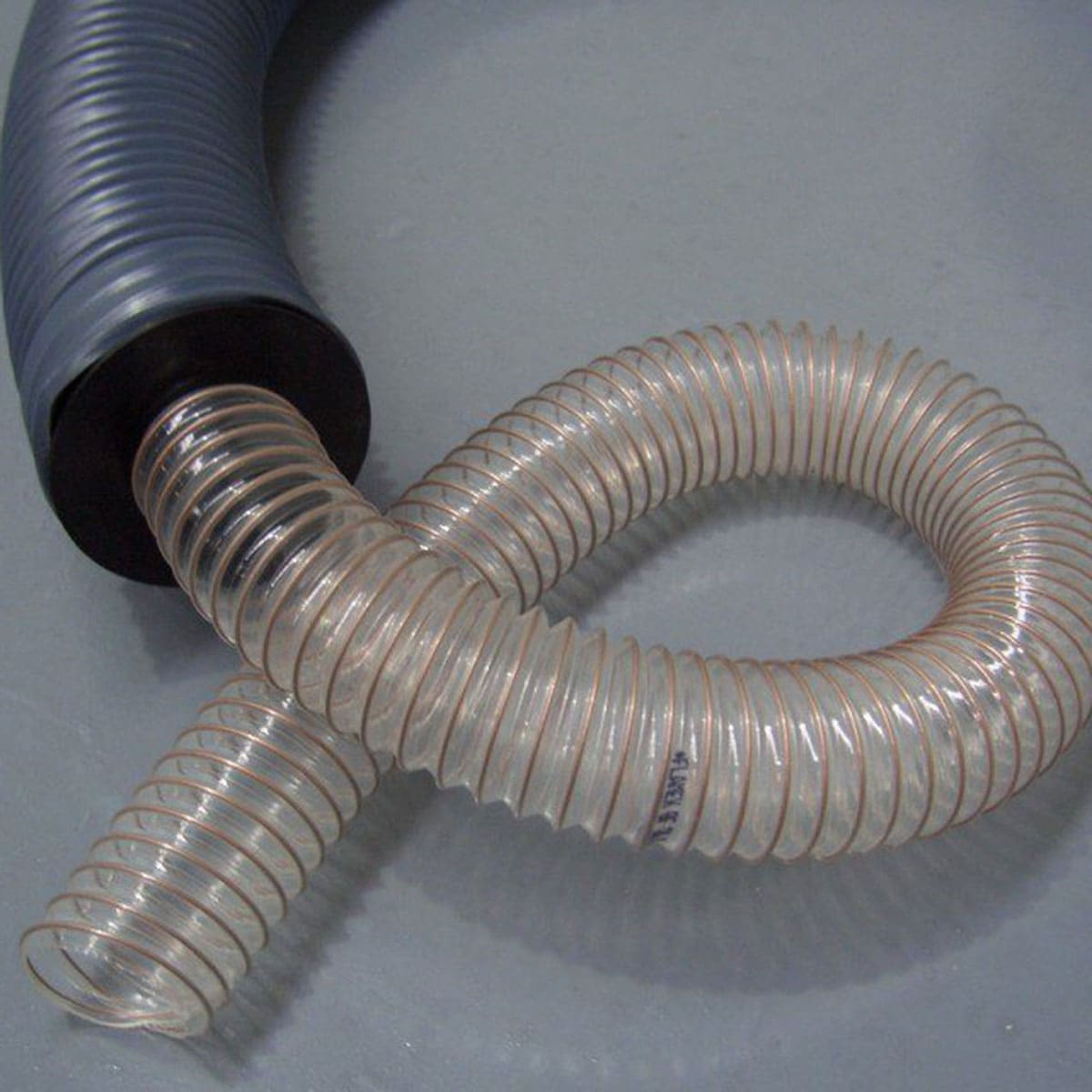

  • 2 Metre Length of Flexible Hose Included

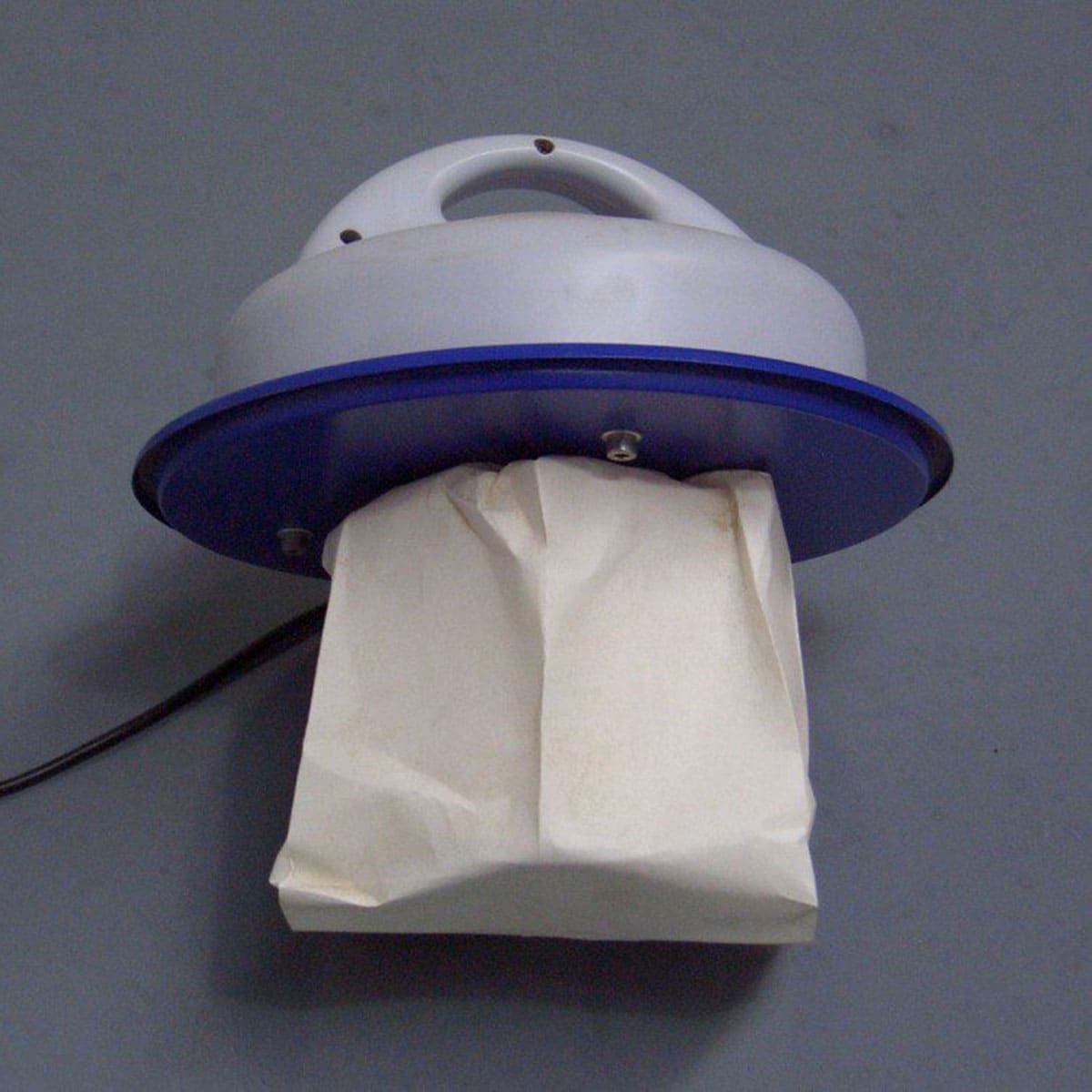

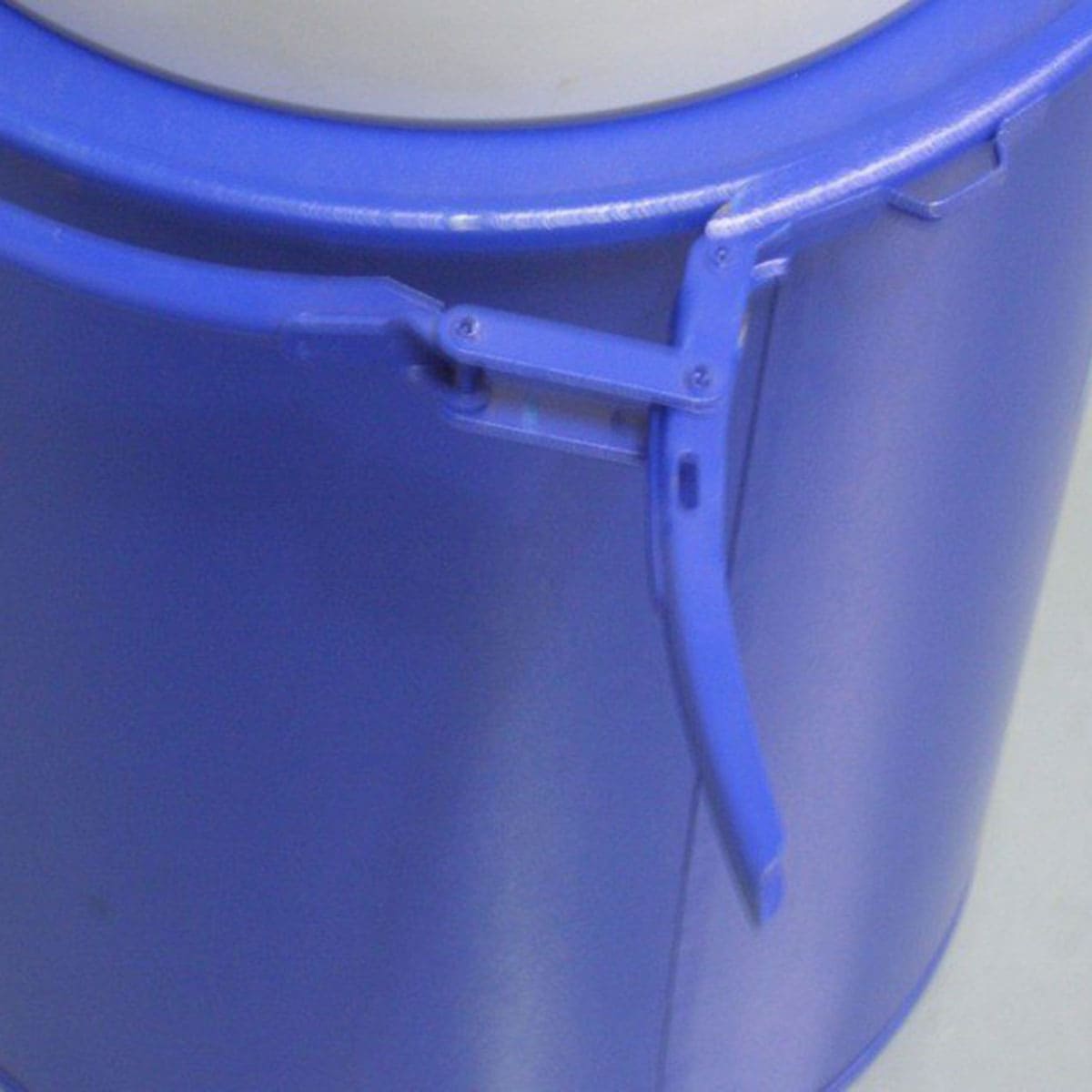

This fine filter vacuum extractor is ideal for small workshops using bench top machinery and powertools. Because these machines generate a high speed of air through the hose they are more suitable for reducing down to a smaller diameter hose for use with portable power tools. At the heart of the extractor is a 2 stage filter which cleans particles out of the air down to 0.5 micron. Fine enough for every machine in the workshop including sanders. The compact size and light weight, makes it particularly appealing for smaller workshops, where space is a premium, and it can be kept underneath a bench. A quick action clamp releases the lid of the drum to empty it out.

These extractors are a great alternative to a standard household vacuum because they do not get blocked and have a larger capacity, so need emptying less often.

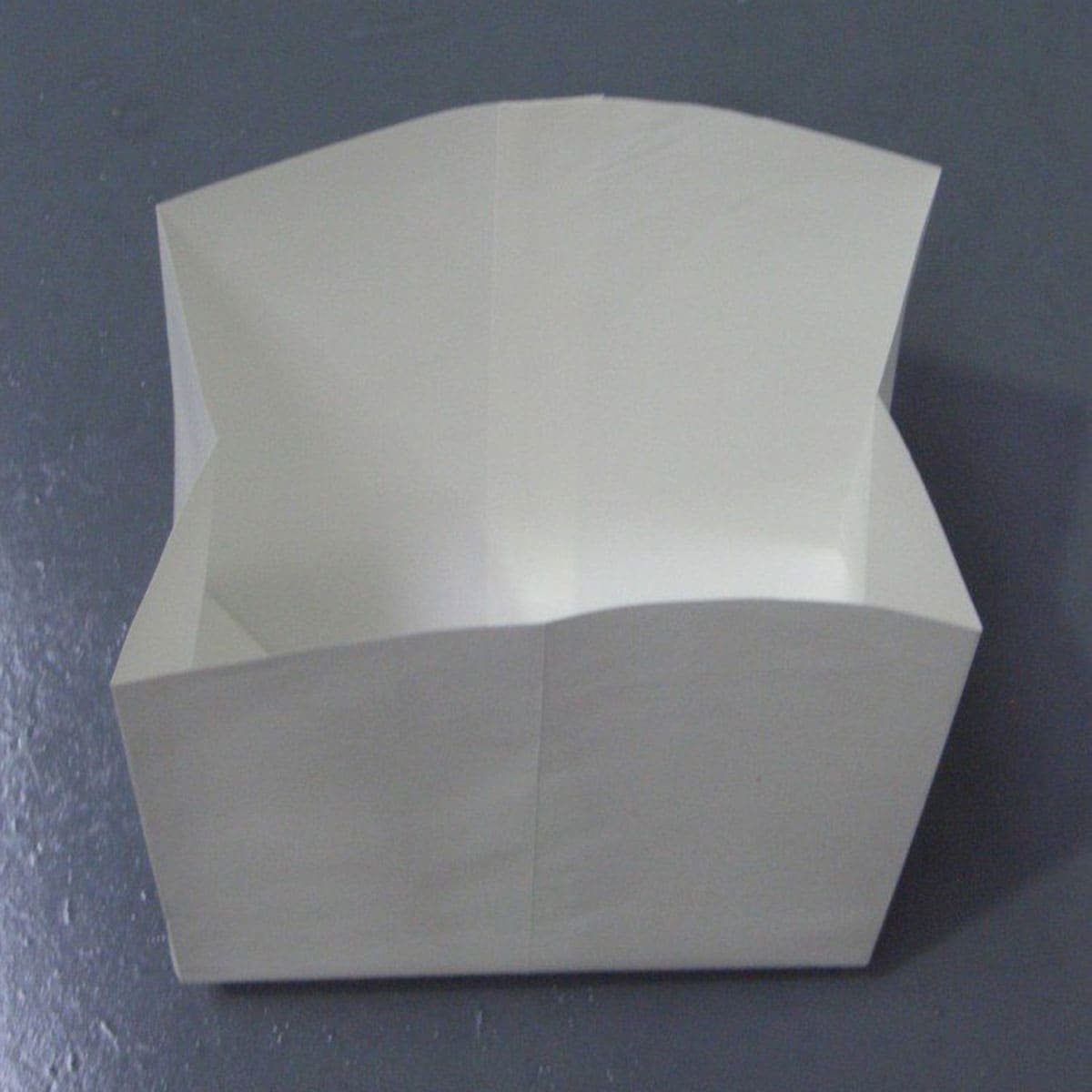

Supplied with 2m hose, 2 hose clamps, 3 replacement filter bags, 2m cable and plug.

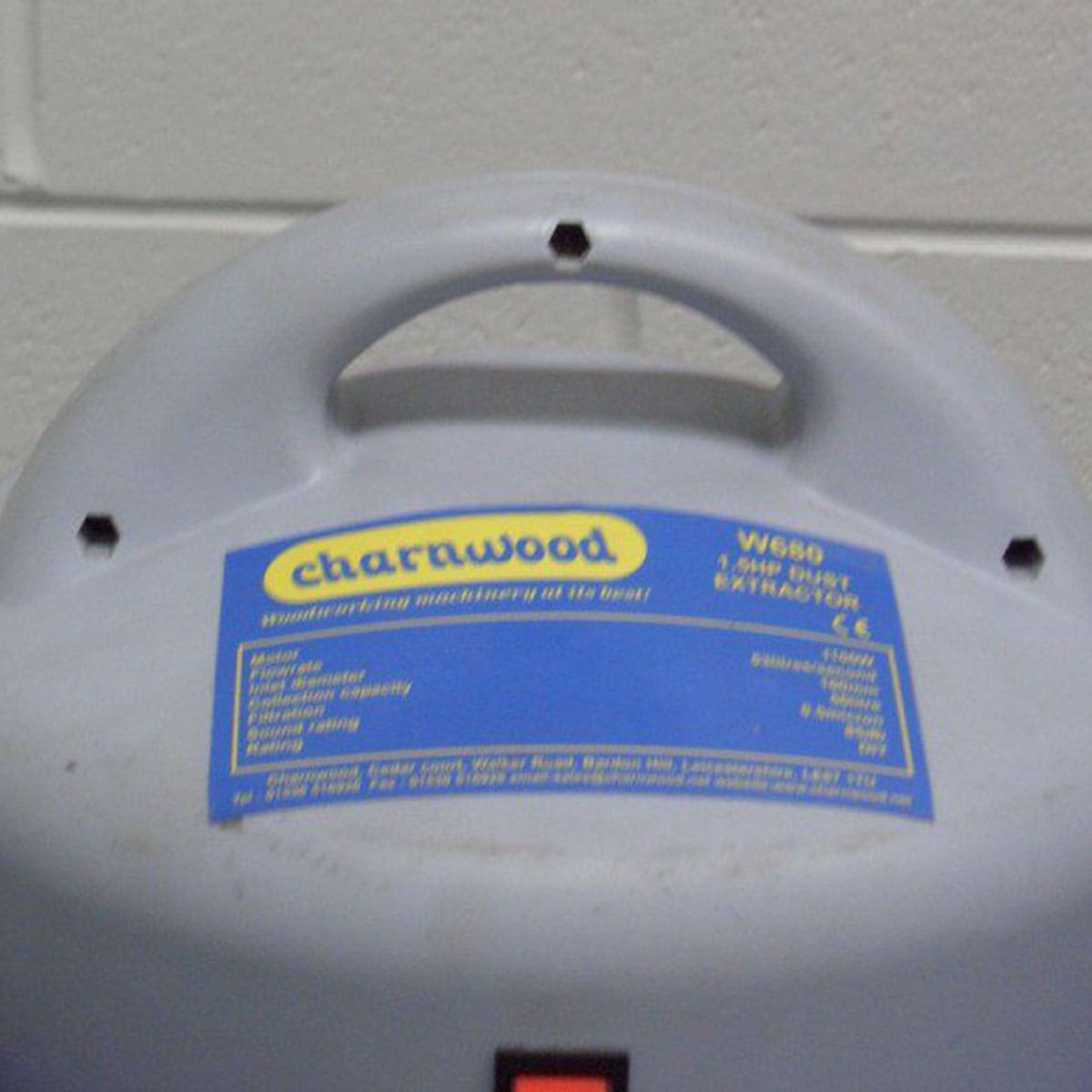

W680 Specification

Motor (carbon brush) 1100w (1.5hp), 240v
Flowrate 3.05m3/min (53 Litres per second)
Inlet Diameter 100mm
Drum Capacity 50 Litres
Dimensions (WxDxH) 390mm x 450mm x 670mm
Weight 10kg
Rating Hobby
Warranty 1 Year
