The PRO version of the Harvey wheel is an incredible piece of innovative engineering. It differs from the standard base by having 4 foot pads which are raised and lowered by the pedal. It is so accurately made that when the foot pads are down, the castors are still in contact with the floor. When the pads are raised there is no loss of stability or change in attitude. Using 4 swivel castors allows the base to literally rotate on its own axis. Standard wheel bases with 2 fixed wheels require a slightly large turning circle.
In stock|12th May 2025
For woodworkers, optimizing workspace is crucial, but the challenge of moving heavy equipment often hinders this goal. Introducing the Harvey Spider Mobile Base, an innovative solution that streamlines the movement and precise positioning of even the largest tools. With this revolutionary base, you can maximize space utilization, creating limitless layout possibilities and elevating your woodworking experience.

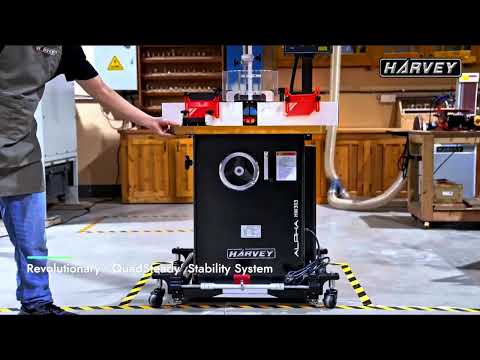

Revolutionary ‘QuadSteady’ Stability System
The M-1500 and M-1500Pro Spider-Mobile Bases feature the innovative ‘QuadSteady Stability System’ within each leg.
With four independent support legs with spring assistance, this system adapts to uneven surfaces and terrain upon contact, offering exceptional stability on various surfaces.
Consistent Tabletop Height
Using a typical mobile base on the market can lead to challenges, especially if the equipment has support legs. Each time you raise or lower the mobile base, the equipment tabletop on the base adjusts its height accordingly. This variability can disrupt your precise settings and increases the risk of tools, not securely anchored, tumbling off the tabletop. Moreover, when the height changes, the machine’s unsupported legs can dangerously tilt to the side.

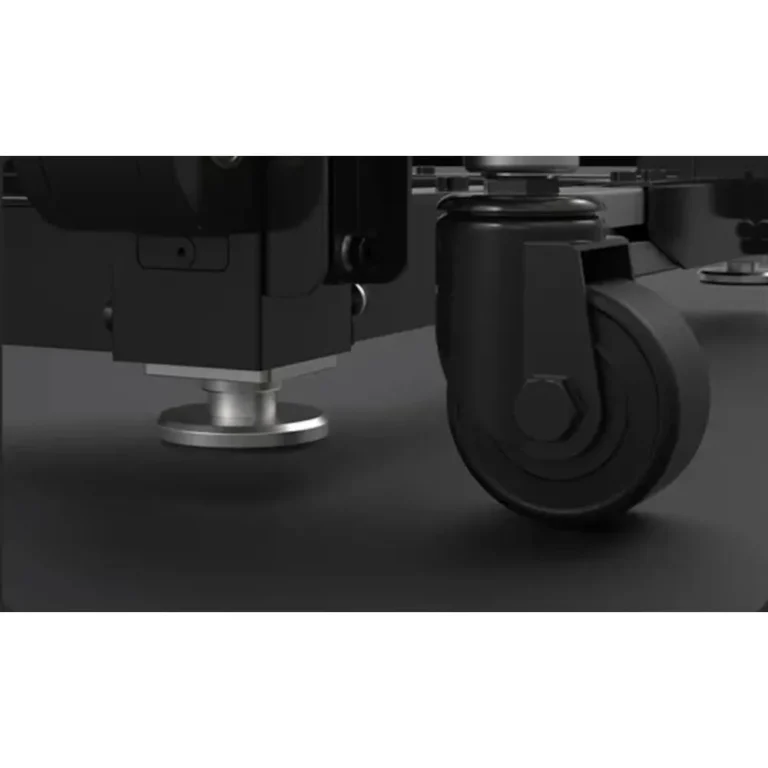

The M-1500 (Pro) effectively eliminates these issues with its innovative ‘QuadSteady’ Stability System. With this system, the swivel casters maintain constant contact with the ground whether the base support legs are being raised or lowered, thereby keeping the tabletop height consistent.
This stability ensures the accuracy of your operations, prevents any accidental drops of tools, and avoids the dangerous side tilting of the machine legs.
The fixed legs enhance the static friction up to 916N, ensuring maximum stability during use.
(It’s calculated based on a friction coefficient of 0.8 between the legs and cement floor)
Maximum static friction: 916N
Magic Spinning with Swivel Casters
In cramped woodworking shops, using a typical mobile base often means that moving large equipment requires multiple adjustments.
The M-1500 Pro revolutionizes this process with four swivel casters, allowing smooth spinning and turning in any direction, even U-turns in narrow spaces.
Additionally, the ability to smoothly shift and retrieve equipment at any angle enhances its flexibility and accessibility in tight spaces.
One-Foot Control for Quick Stop and Go

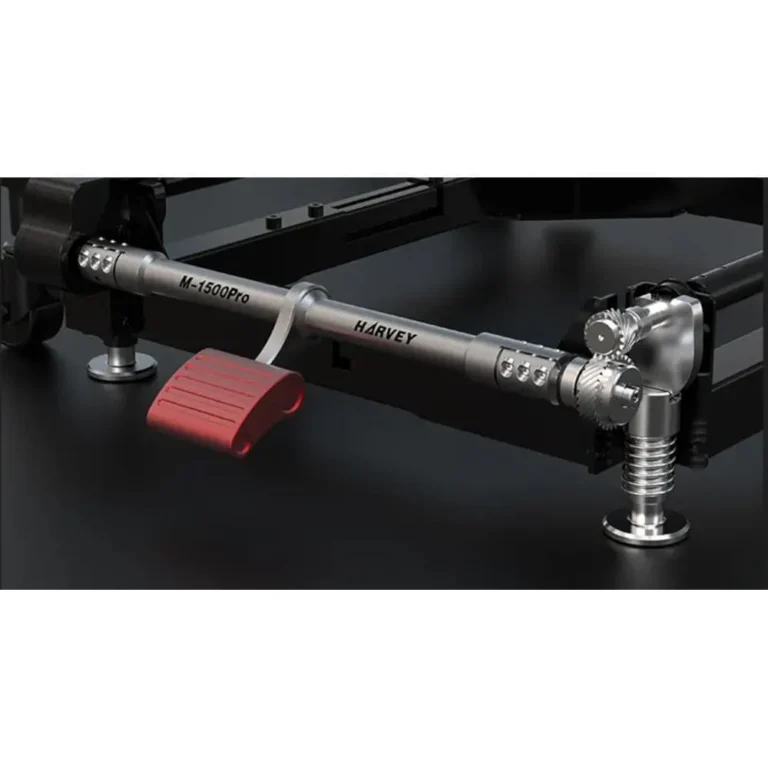

The M-1500Pro base uses an innovative linkage design. A light step on the foot pedal raises or lowers all four-foot pads simultaneously, positioning the equipment.
This design ensures consistent user stepping force, regardless of equipment weight, simplifying operations and boosting work efficiency.
Horizontal Tabletop for Optimal Performance
The M-1500 Pro’s adjustable swivel casters ensure a level tabletop on uneven surfaces, meeting U.S. garage slope standards ( 1/8” to 1/4” per foot).
Adjustable Base Size for High Versatility
Length 530mm – 760mm
Width 420mm – 650mm
The adjustable base size of the M-1500(Pro) accommodates different equipment bases, offering extreme versatility.
Premium Materials for Exceptional Load-Bearing Capacity
Constructed with high-quality aluminium alloy and stainless steel, the M-1500(Pro) boasts excellent rust and wear resistance, efficiently bearing loads up to 1500 lbs (680 kg).
Optional Accessory
M-1500E Extension Kit for Machines with Support Feet
Designed specifically for machines with additional support feet or legs (e.g., table saws), the M-1500E Extension Kit provides seamless movement.
Length 700mm – 1166mm
Width 470mm – 700mm
