10″ Panel Saw with Sliding Beam

Product Code:W660

Product Description


This item is no longer available to order. A limited range of spare parts are still available. Contact our sales office to order.
Any accessories listed in the ‘Related Products’ section below, are still available to order online.

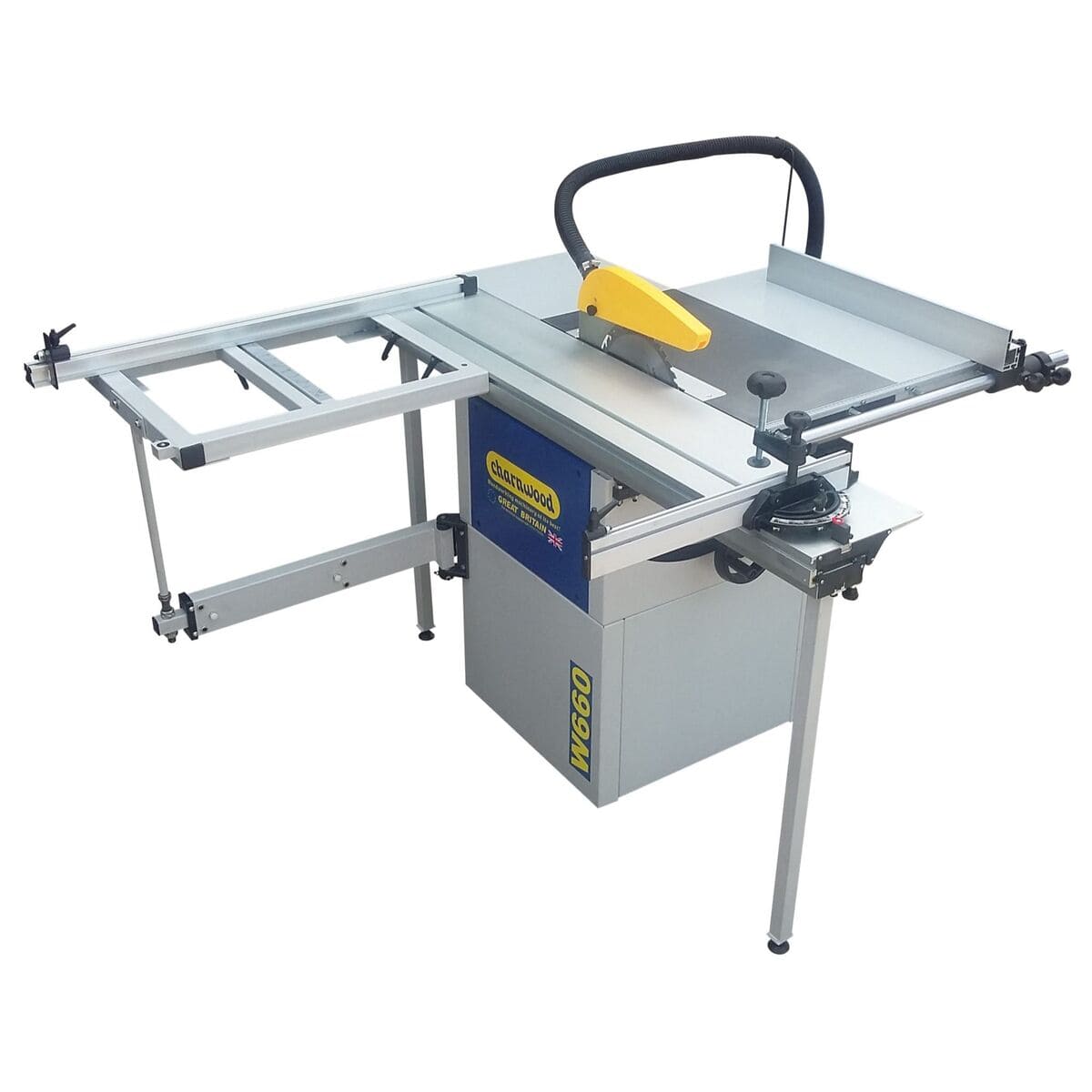

Panel saw with 48” Sliding beam.

  • 3hp Induction Motor with Brake
  • Cast Iron table saw
  • 4 Travel Sliding Beam
  • Rip Fence with Micro Adjuster
  • All Extension Tables Included
  • Mitre Fence Included

Based on our best selling 10″ Table Saw, we have increased the specification by adding a more powerful motor and a sliding beam with a 1220mm length of cut. This makes the saw ideal for handling large panels, anything up to an 8 x 4 sheet.

The sliding beam of this table saw, runs on a set of bearings along a sturdy support bed with additional support legs at each end. This gives a very smooth action with a high degree of accuracy. The beam can be locked in position when using the rip fence.

The extension table is also supported by a telescopic arm to take the weight of larger panels. The squaring arm at the rear of the table can be adjusted at any angle up to 45 degrees and is fitted with a flip over stop for repeat measurements.

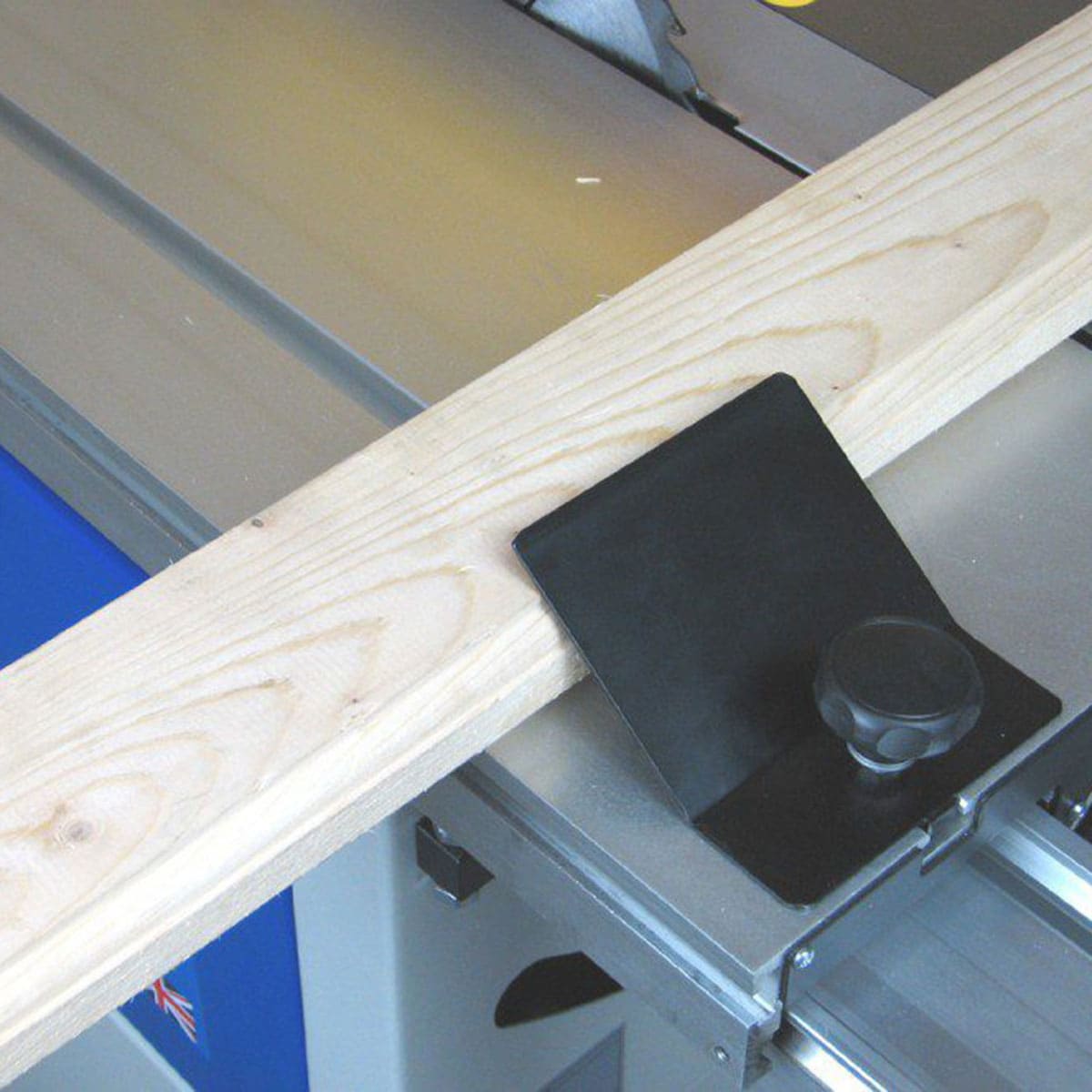

For crosscutting smaller pieces we also provide a mitre fence which locks onto the sliding beam and can be adjusted to any angle from 90 to 45 degrees.

Supplied with 36 tooth TCT sawblade, push stick, rip fence, 1.8m power cable and UK 3 pin plug.

W660 Specification

Main Table Size 650mm x 620mm
Maximum Ripping Width Using Fence 610mm
Support Table Size 600mm x 450mm
Maximum Crosscutting Width 1225mm

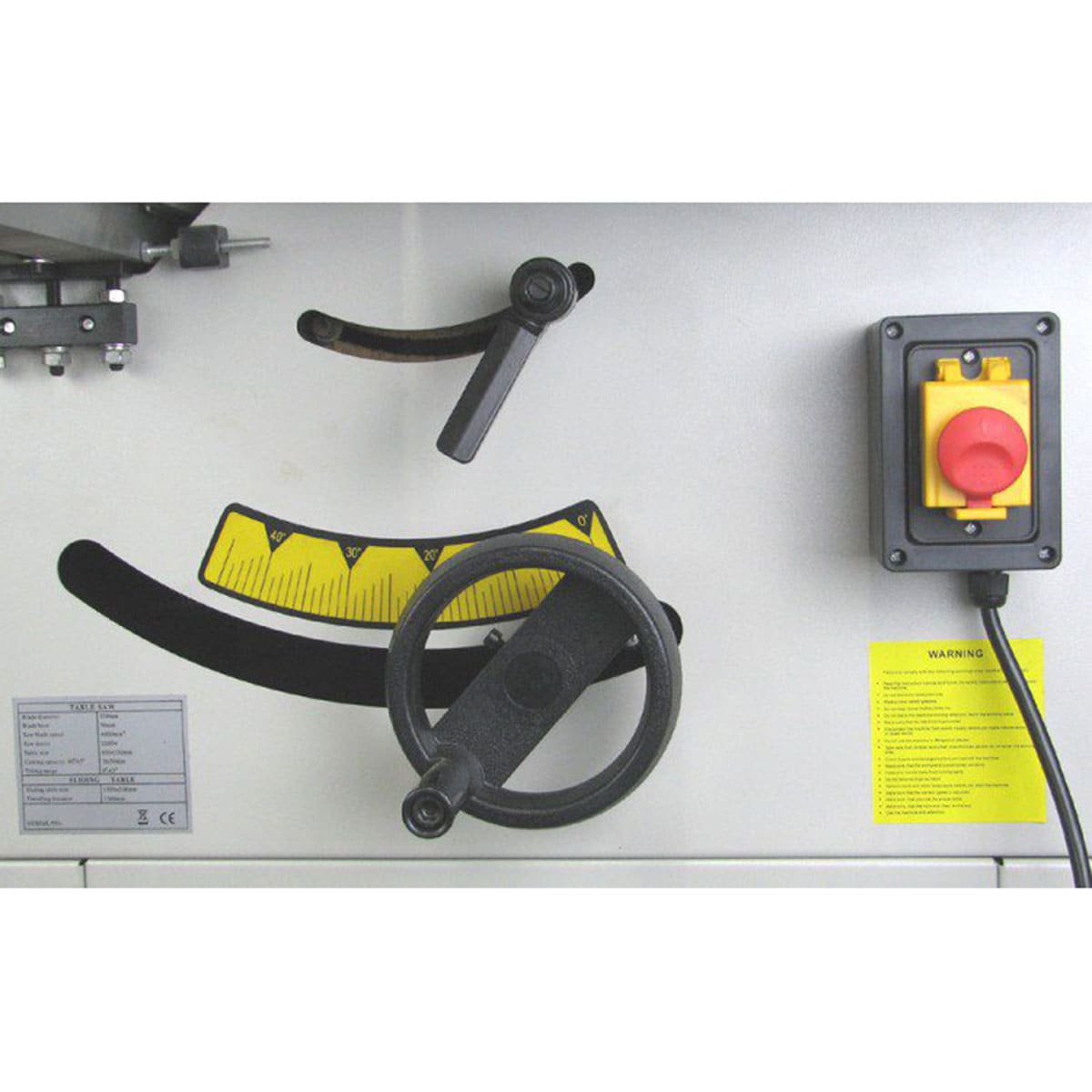

Blade Tilt 90 – 45 degrees
Cutting Depth at 90 degrees 80mm
Cutting Depth at 45 degrees 56mm
Blade Diameter 250mm
Blade Bore 30mm
Work Table Height 830mm
Motor (induction) Braked 2200w (3hp) / 240v
No-load Blade Speed 4000rpm
Minimum Blade Width (Kerf) 3.0mm
Dimensions (WxDxH) 1750mm x 1500mm x 1140mm
Weight 170Kg
Db (Without Load/With Load) 81Db/89.5Db
Rating Trade
Warranty 1 Year

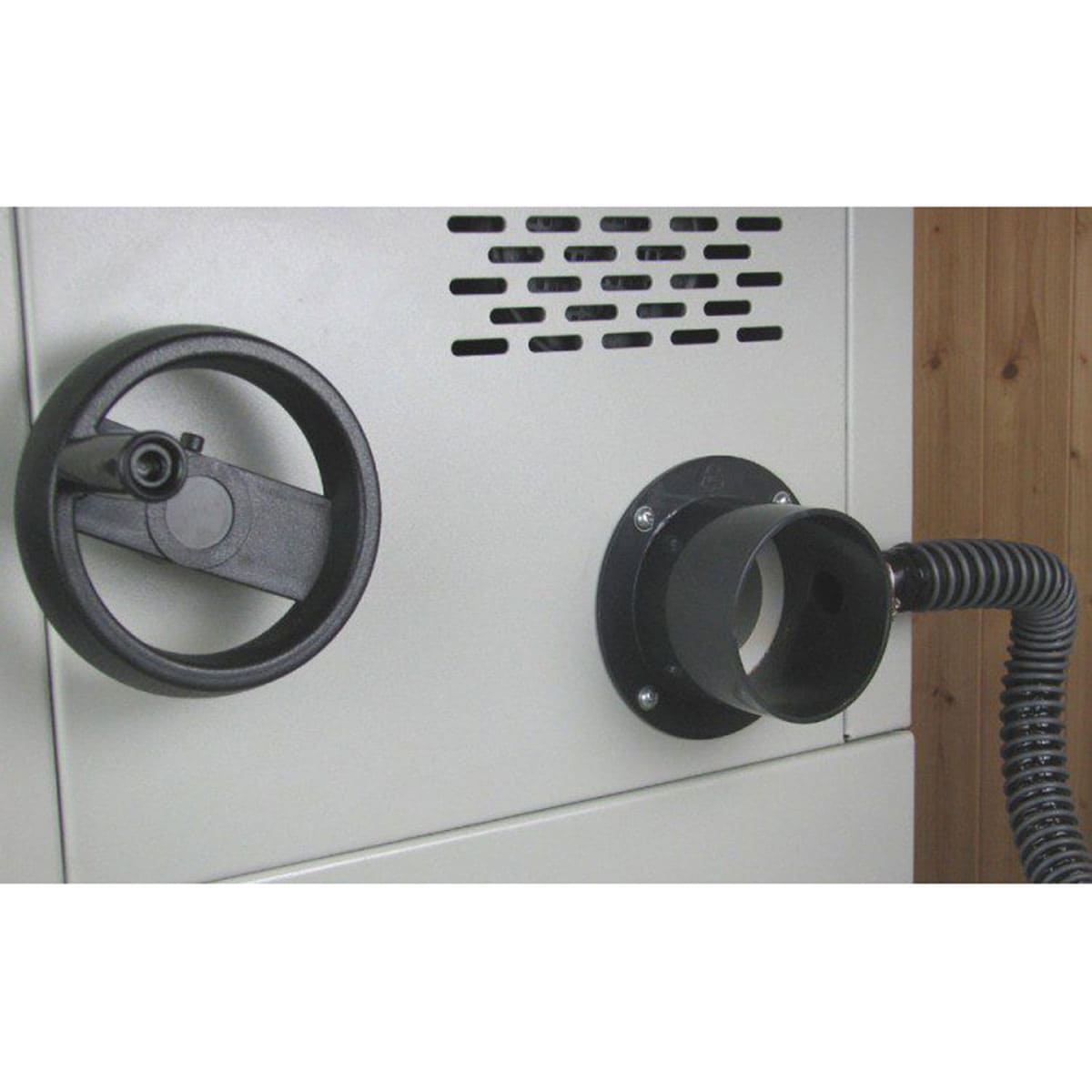

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the sawguard and takes it to the single 100mm diameter hose connection point at the side of the machine.

Please note: It is not possible to use a stacked dado set with this saw.
