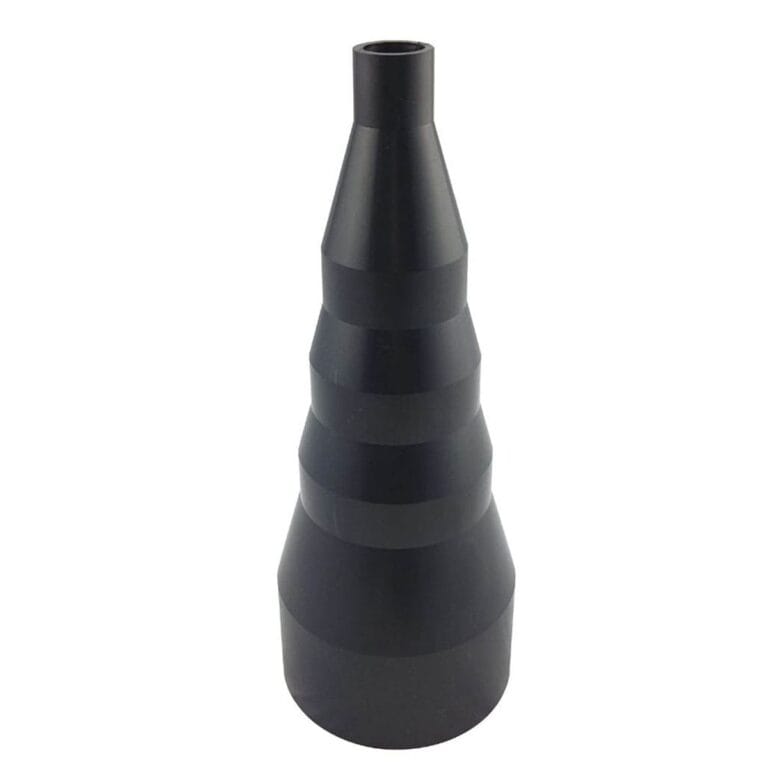

Charnwood 100/25RC Stepped Hose Reducer 100mm to 25mm (4″ to 1″)

A Stepped reducing cone used to step down or up in hose size and used for connecting to machinery with different sized outlets.

This reducer has 5 steps so that any combination of two sizes can be achieved. For example to get a reducer form 75mm (3″) down to 63mm (2-1/2″) it is necessary to cut off the unwanted parts just leaving the middle steps.
A hose clamp should be used to fasten hoses to the reducer.

Step Sizes Outside diameter;
100mm, 75mm, 63mm 50mm & 25mm (4″, 3″, 2.5″, 2″, 1″)

Possible Sizes:

• 100mm (4″) to 75mm (3″)
• 100mm (4″) to 63mm (2.5″)
• 100mm (4″) to 50mm (2″)
• 100mm (4″) to 25mm (1″)
• 75mm (3″) to 63mm (2.5″)
• 75mm (3″) to 50mm (2″)
• 75mm (3″) to 25mm (1″)
• 63mm (2.5″) to 50mm (2″)
• 63mm (2.5″) to 25mm (1″)
• 50mm (2″) to 25mm (1″)
