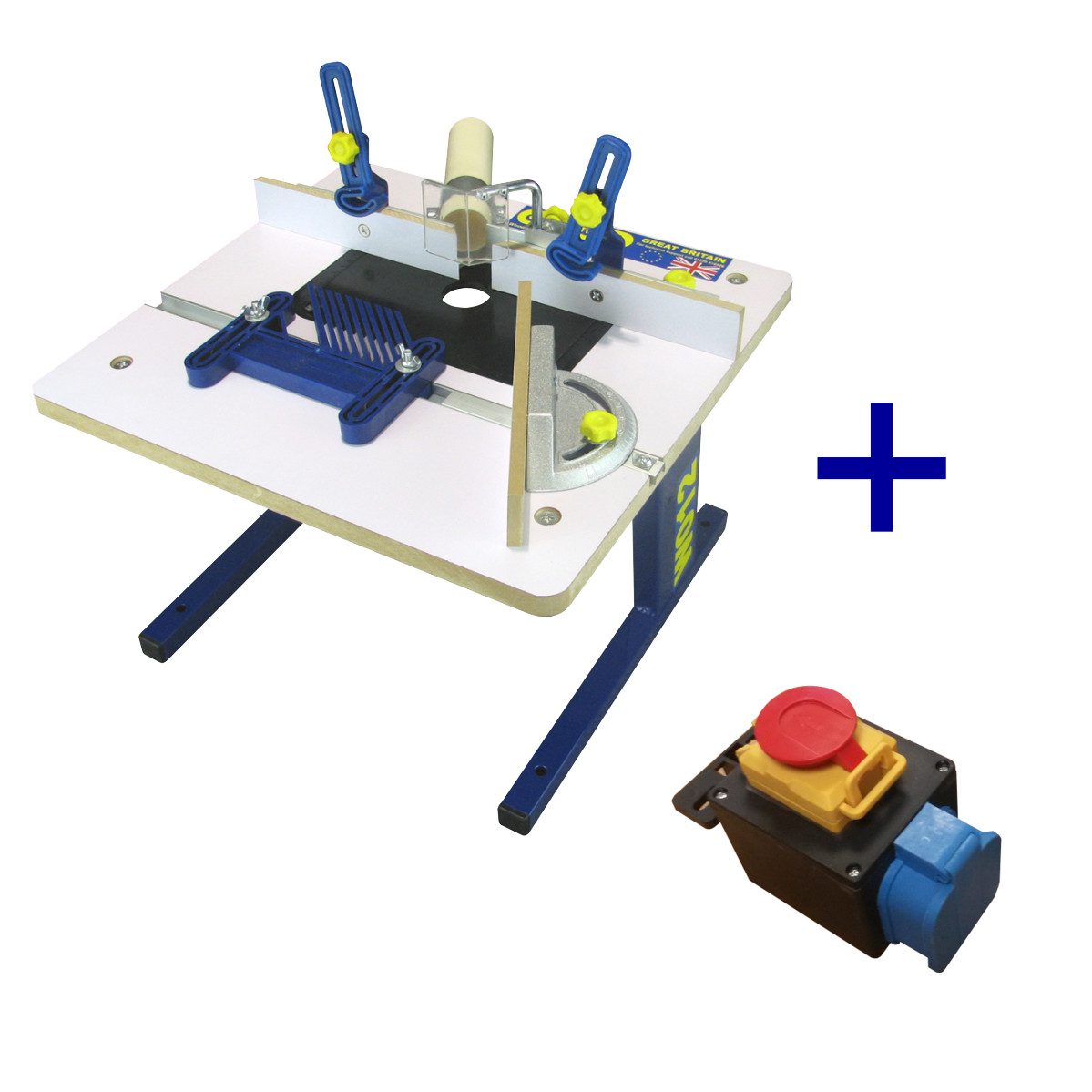

Package Deal: Save £15
W012 Bench Top Router Table
W026 NVR Router Table Switch for 240v Routers
Price available until end of April 2026 or whilst stocks last
W012 Bench Top Router Table
A router table will convert a hand held plunging router into a stationary tool which is safer to use and quicker to set up than working freehand. Ideally suited for all 1/4″ sized routers, this compact router table will perform a variety of jobs such as edge moulding, trenching and cutting tenons.
The side frames are steel with a smooth melamine faced MDF table across the top. The insert plate, which must be drilled to suit your routers fixing points, is made from a tough plastic with an aperture in the centre for the cutter.
The fence arrangement is simple and effective. The three clamps supplied as standard will hold the work piece securely down against the table and up against the cutter, leaving the operator to merely feed the timber through from right to left. A perspex guard protects the operator from flying chips and a dust chute is included for connecting to a vacuum or extractor. A sliding mitre fence, with a replaceable wooden face, completes the standard equipment.
Suitable for use with router cutters up to 35mm diameter.
The table can be used with any router which has a face plate diameter of up to 190mm. This covers all 1/4″ shank routers and even some 1/2″ shank routers can be used.
The height under the table is 260mm. If your router is taller than this, you will need to make 2 runners to go underneath the side legs to lift the table up, to accommodate the extra height. (For Example; the Trend T4 router requires side runners of 60mm in height)
Supplied with tough plastic insert plate, adjustable fence with two replaceable wooden faces, horizontal feather board, two vertical clamps and sliding mitre fence.
The optional NVR safety switch can be attached to the right hand leg to give a more convenient method of starting and stopping the router, rather than reaching underneath the table.
W026 NVR Router Table Switch for 240v Routers
The switch can be mounted to the steel frame of any router table or mounted in any convenient location avoiding the user having to reach under the table to turn the router on and off. The switch also provides a handy emergency stop button.
There is an integral socket built into the underside of the casing. Simply plug your power tool into the socket and connect the plug to your electric supply. 2 Slotted fixing points allow the switch to be used with any router table, commercial or home made.
In order to use a router with an NVR switch you need to be able to lock the router switch in the ‘On’ position, for hands free operation. If your router has a trigger type switch which cannot be locked on you will need to contact the manufacturer or their distributor to obtain a fastening clip. Some routers can also be rewired to bypass the router switch and use this NVR switch instead.
Mounting bracket hole centres 45mm – 70mm
Fixing bolts supplied M6 x 45mm
Supplied with integral socket, separate start and stop buttons, 2m cable, plug and fixing bolts. For use with any power tools up to 2200watts, 240volts.
Product Guarantee: 1 Year
