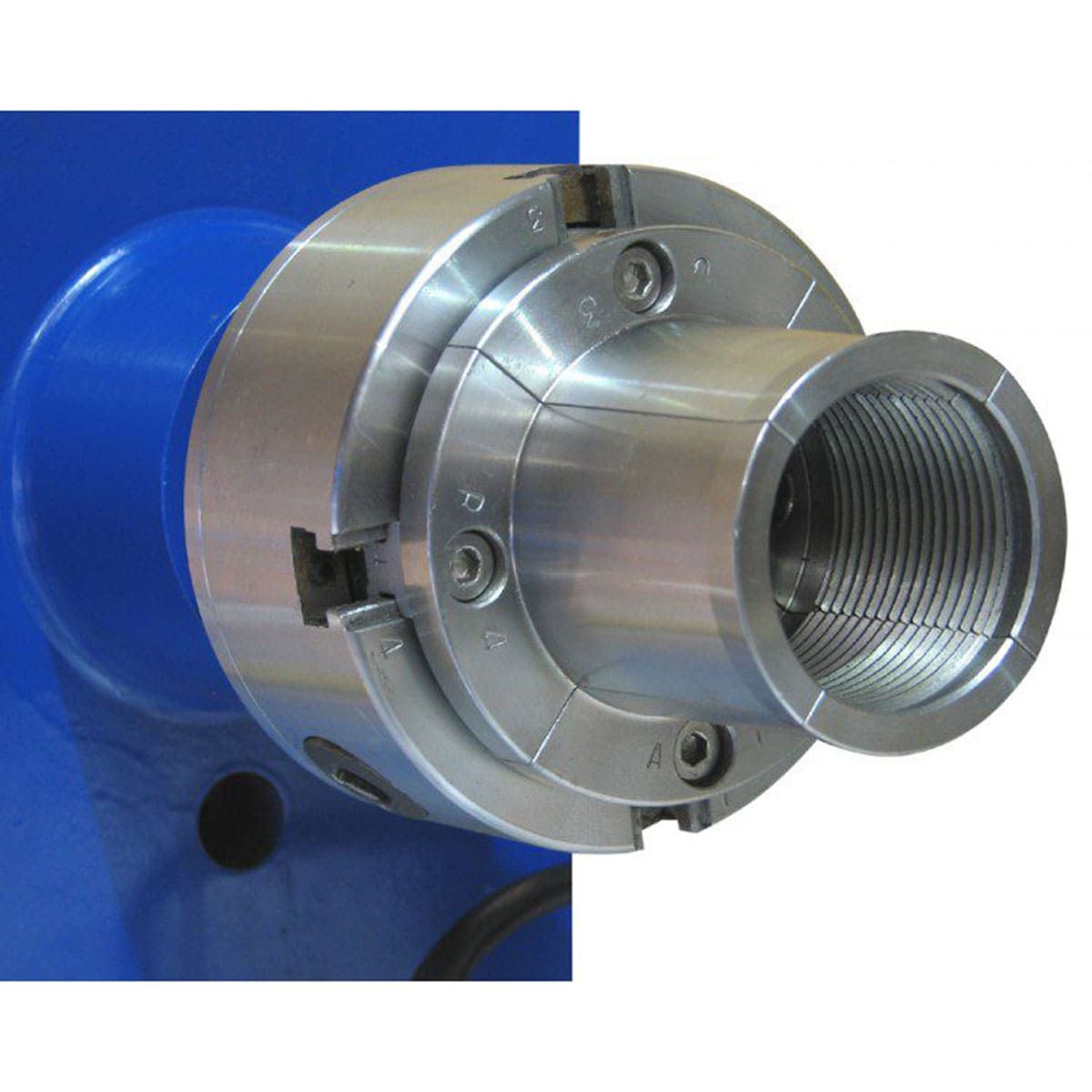

Long Nose Jaws for Nexus3 Chuck.
Our N Type jaws are designed for use with our Nexus3 chuck as well as some other brands.

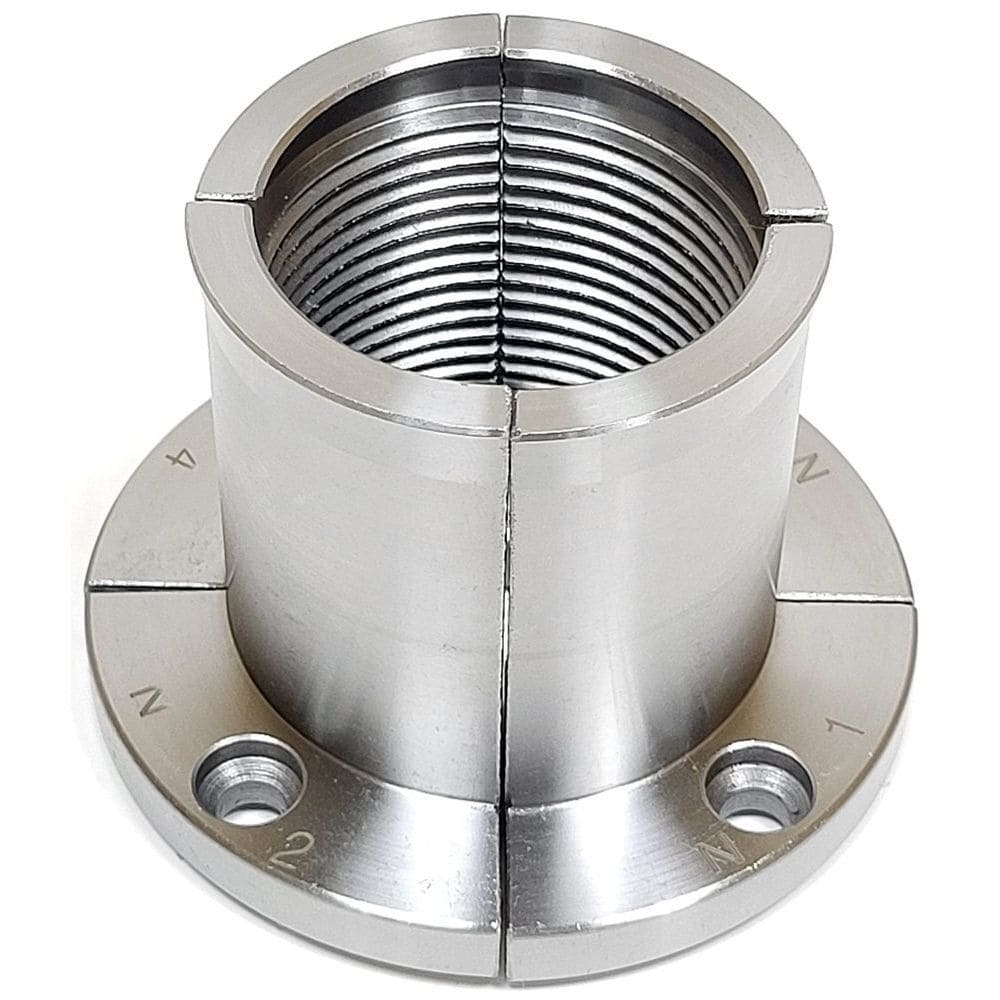

A set of 4 optional jaws for Nexus3 geared scroll chuck. The long nose jaws have a dovetail on the inside and outside of the leading edge. They also have a serrated grip running the length of the inside internally for when an extra strong grip is required. Projects 50mm from base plate.
Long Nose Jaws for Nexus3 Chuck.
Our N Type jaws are designed for use with our Nexus3 chuck as well as some other brands.
A set of 4 optional jaws for Nexus3 geared scroll chuck. The long nose jaws have a dovetail on the inside and outside of the leading edge. They also have a serrated grip running the length of the inside internally for when an extra strong grip is required. Projects 50mm from base plate.
Chuck Jaws are numbered 1 to 4 and should be mounted on the corresponding jaw carrier.
Jaws for the Nexus3 are compatible with the following chucks:

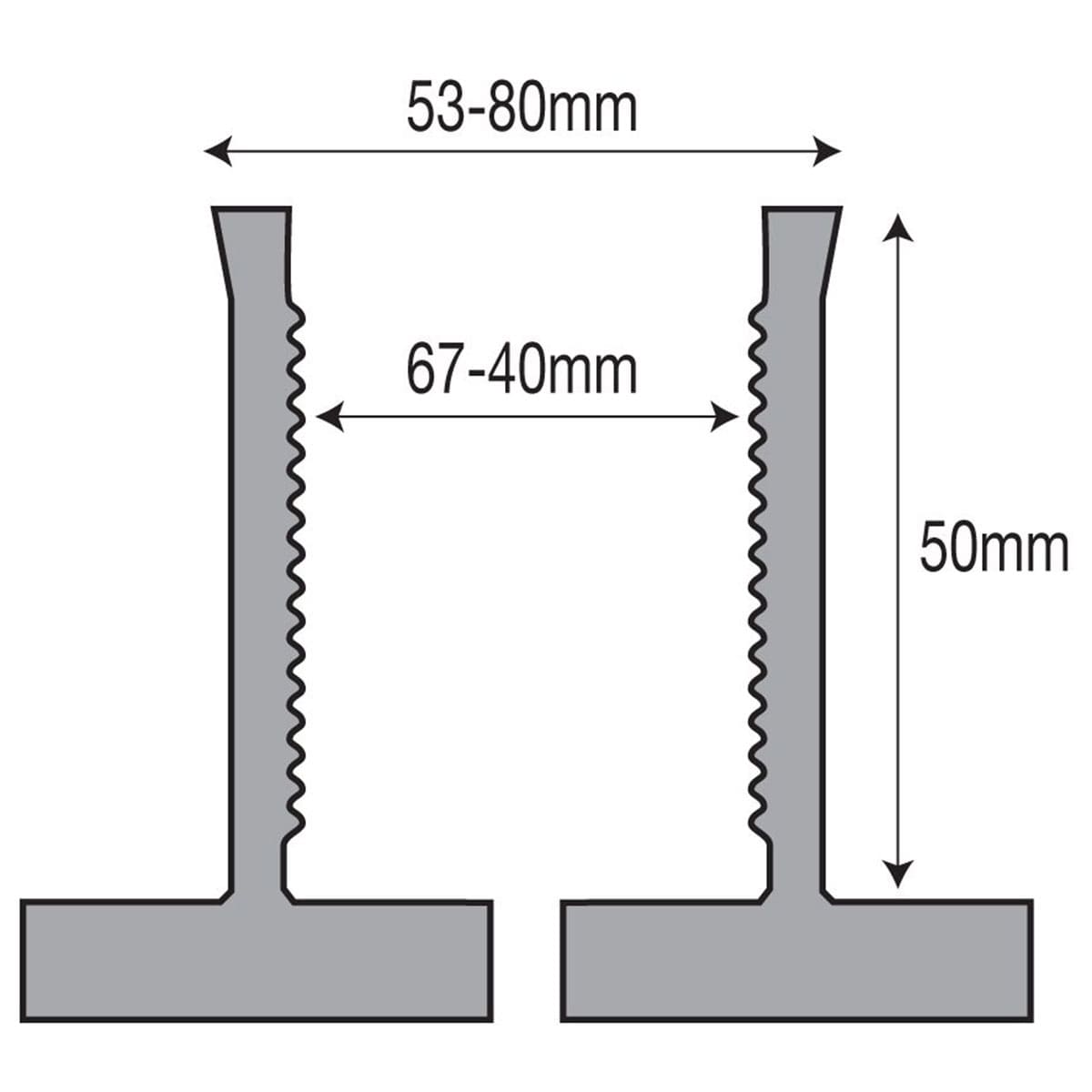

Please note: All dimensions stated are when fitted to a Charnwood Nexus3 chuck. When these jaws are fitted to a compatible chuck, the dimensions will change, depending upon the amount of jaw travel it has.
