Heavy Duty Floorstanding Lathe

DISCONTINUED AUGUST 2017 – REPLACED BY MODEL 1624V

This item is no longer available to order. A limited range of spare parts are still available. Contact our sales office to order.
Any accessories listed in the ‘Related Products’ section below, are still available to order online.

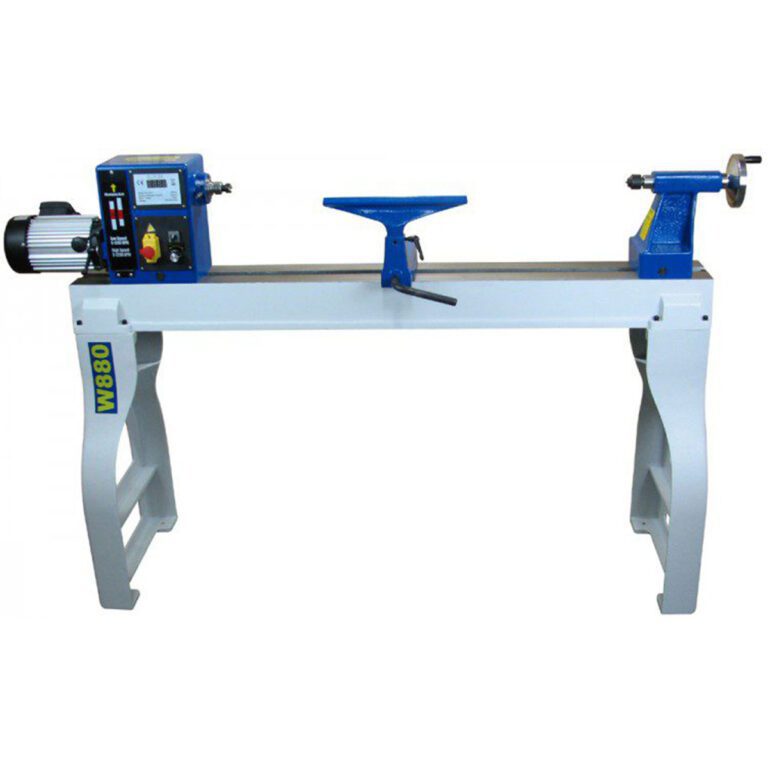

Heavy Duty Floorstanding Woodturning Lathe W880.

• 1500w (2hp) Induction Motor
• DC motor with Delta branded inverter
• 18″ Diameter Bowl Turning Capacity
• 14″ Diameter x 47″ Length Spindle Turning Capacity
• Electronic Variable Speed
• Built in Digital RPM Speed Display

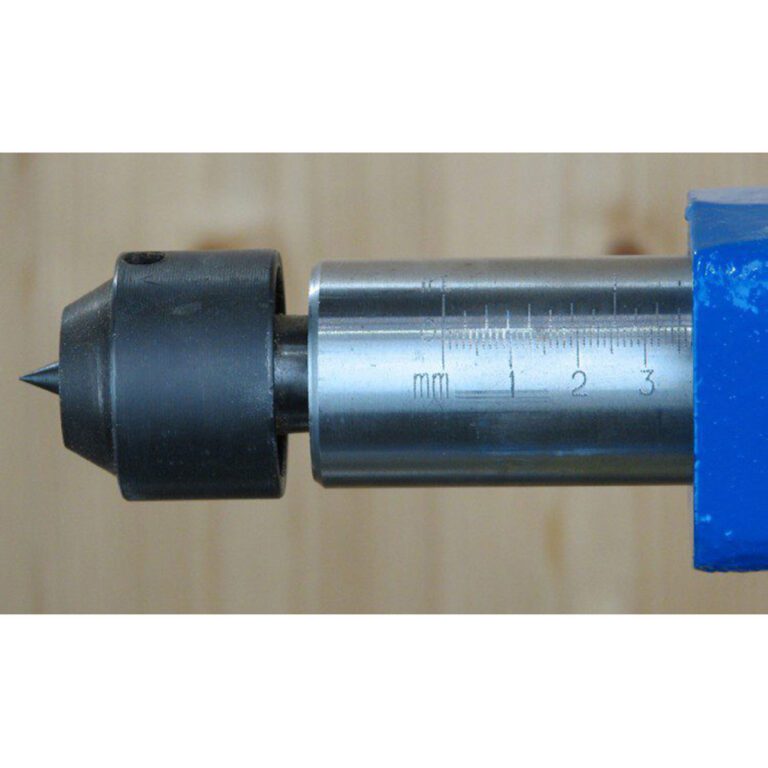

• Hollow Head & Tail Stocks
• Forward and Reverse operation
• Built in spindle indexing

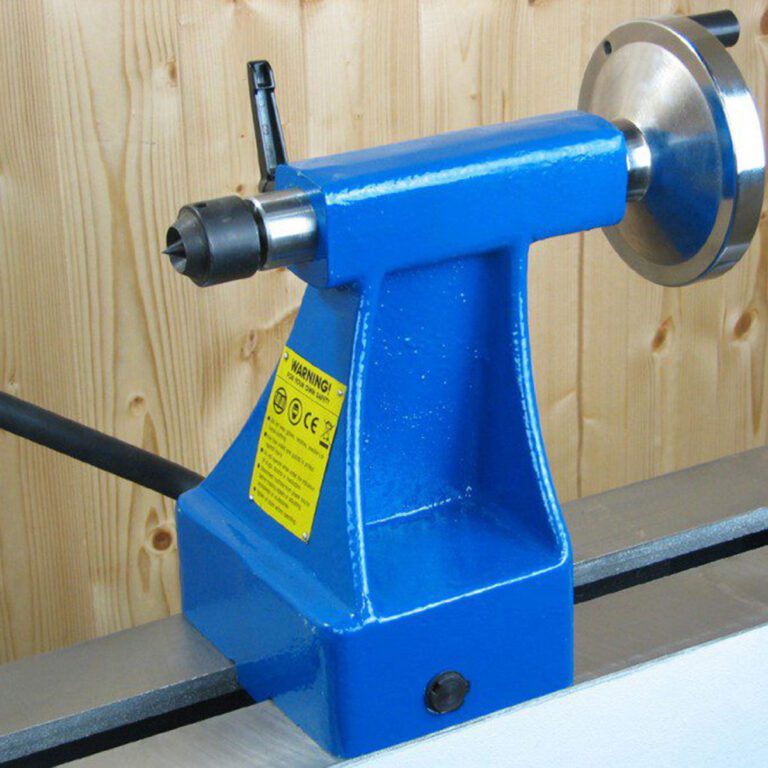

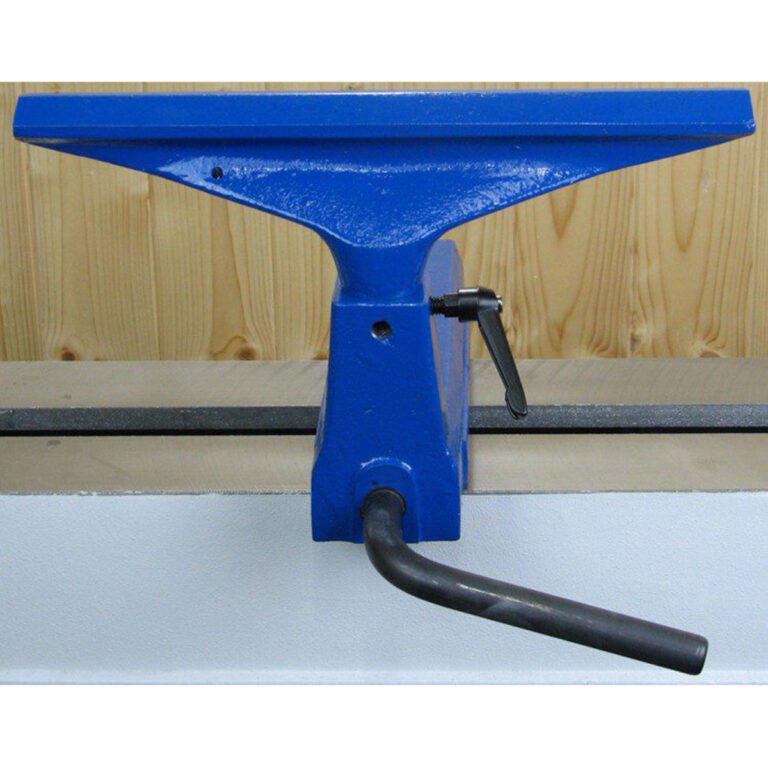

The headstock on this professional level lathe can be positioned anywhere along the bed so that a comfortable position can always be found for any job. The headstock, toolrest and tailstock are all made from cast iron and have cam-locking levers for fast adjustment.
The lathe is connected to any standard 240volt power supply but an inverter then converts the power to allow a full range of speed control down to 100rpm without losing any torque from the motor.

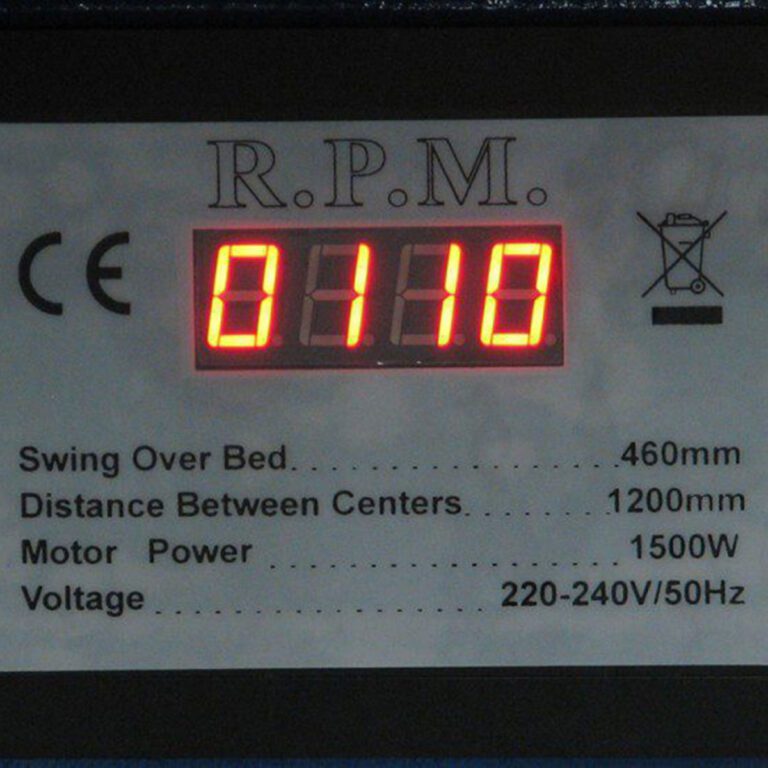

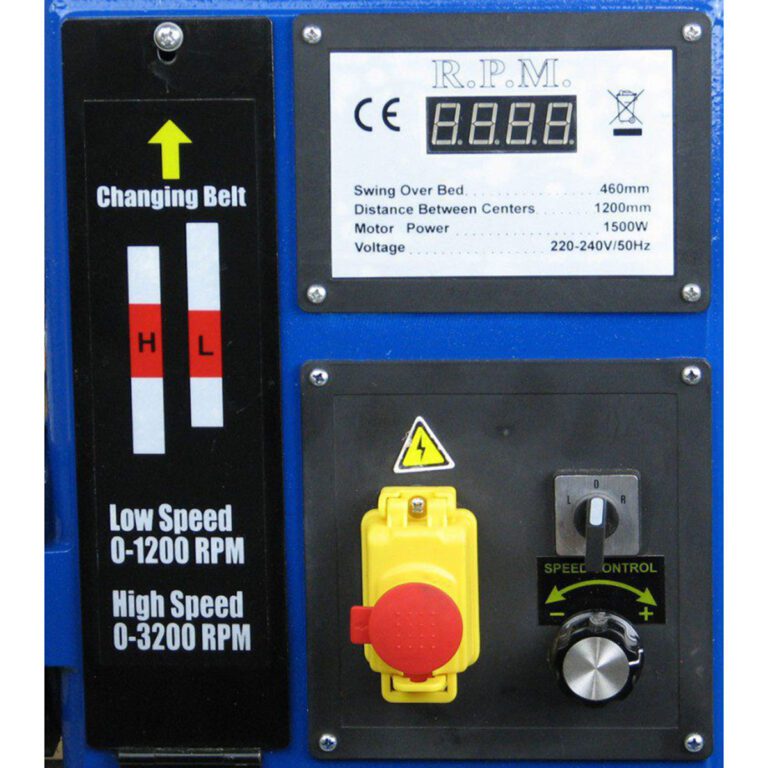

A digital display gives an accurate speed reading at all times. A pulley change selects the low or high speed range, low is used for heavier workpieces where more torque is required.
The versatility of this machine is further increased with the addition of a reverse direction selector, 36 position indexing system and hollow headstock and tailstock suitable for long hole boring.
A cast iron floorstand ensures vibration free running and brackets are fitted should you wish to attach a storage shelf.

Supplied with four pronged drive centre 2MT, revolving tail centre 2MT, spindle lock, centre knock out bar, floorstand, 355mm toolrest, 150mm diameter faceplate, cable and plug. Runs on standard 13amp supply.

Please note: This item is extremely heavy and requires 2 people for assembly.
