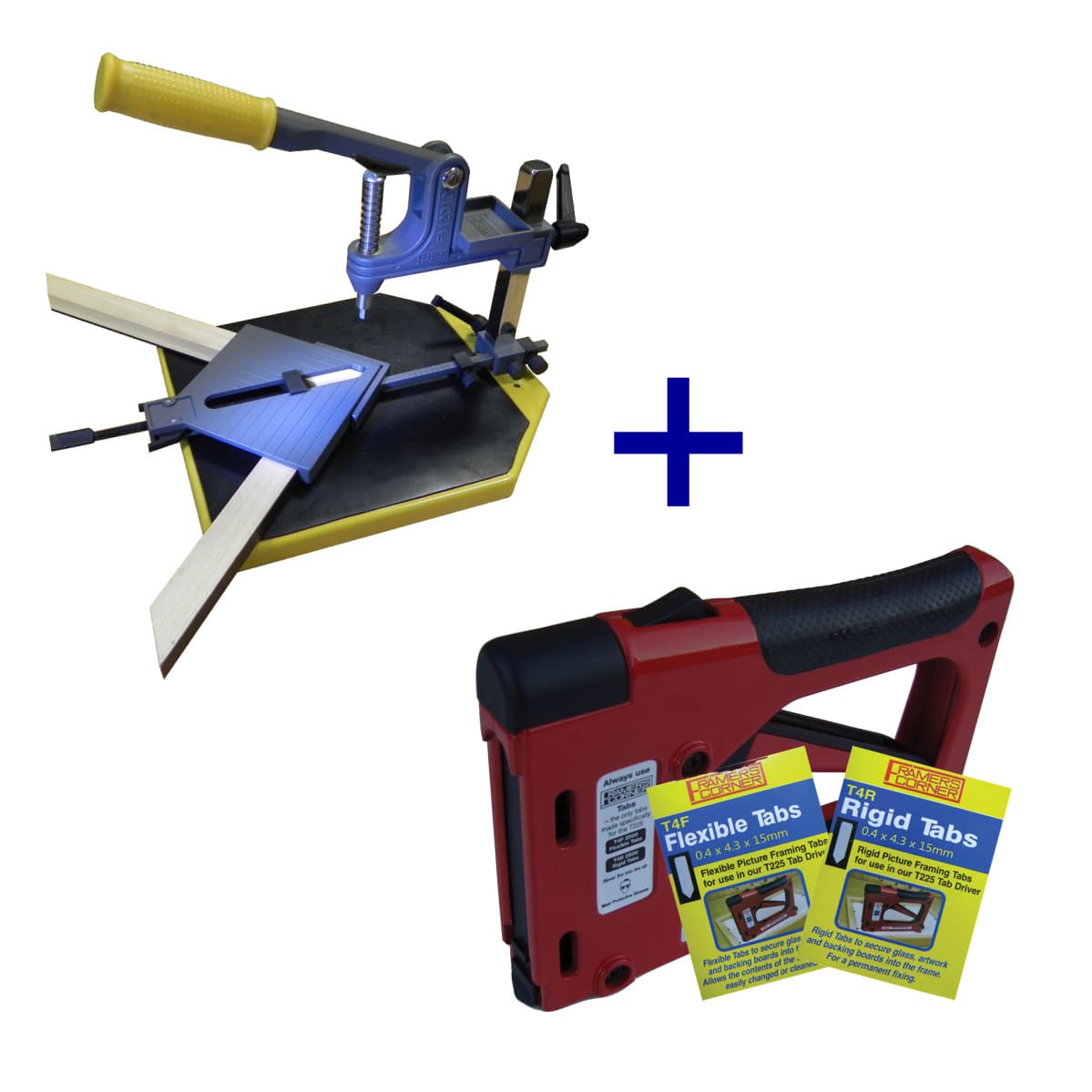

Charnwood Package: PFK04 Deluxe Picture Frame Joining Kit, T225 Tab Gun, T4F Tabs, T4R Tabs

Save: £16.00

Picture Framing Package:

• PFK04 – De luxe Picture Framing Kit
• T225  – Manual Tab Gun
• T4F – Flexible Tabs (2550)
• T4R – Rigid Tabs (2550)

Perfect for the home framer or artist to be able to join and assemble professional looking picture frames at home.

PFK04

The frame clamp is made from Aluminium and has a quick action mechanism to quickly and securely hold the two mitred pieces of moulding. Once clamped, the corner is turned upside down and positioned on the non-slip base and up against the fence for accurate location of the wedge. Minimum sized frame 150mm x 150mm inside the rebate.

The fence itself can be positioned to allow for any sized picture frame moulding, up to 75mm wide, with a front and back locating stop which can be set when using wider mouldings which require two wedges in each corner.

When working with taller mouldings, up to 100mm, it is possible to perform an operation known as stacking, where two wedges are inserted on top of each other. The second wedge pushes the first one in deeper so that inserting 2 x 10mm height wedges is the equivalent of a 20mm wedge.

The driver for inserting the wedges has a square shaped magnetic tip which securely holds the next wedge in place. The hand lever is pushed down, which does not require much force and can be operated by anybody, Until the wedge is fully inserted and flush with the back of the frame.

Once all 4 corners have been joined the frame is ready for the artwork to be put in, the backing board secured in place, using our T225 Tab Driver, and then hung on the wall. We include a FREE hardware kit to provide the finishing touch.

Clamp accepts maximum moulding width of 75mm.

FREE 266 Piece Hardware Kit;
100 x 7mm Wedges
100 x 10mm Wedges
5m Picture Hanging Wire
8 x Screw Eyes
8 x D Rings
8 x Screw Rings
6 x Large Wall Hook
4 x Small wall hook
10 x Wood screw
20 x Masonry Nail
1 x Frame leveller (Spirit Level)

1 Year Product Guarantee.

T225

The T225 tab driver is one of the world’s best selling Manual Tab drivers, with proven reliability at a great price.

This hand operated tool is used to insert flat tabs which neatly secure glass, artwork and backing board into a picture frame.

It has a rubber hand grip for comfort, and a rubber damper to reduce shock when the trigger is pulled. A quick release lever gives access to the magazine for loading more tabs or changing between the 2 different types of tabs.

Choose from either flexible or rigid tabs – the flexible tab can be bent up (just using a finger nail) so that the contents of the frame can be easily changed or taken out for cleaning. The rigid tabs are made from a stronger steel and can be used for a more permanent fixing.

The tabs are 15mm in length and will be inserted approximately half way. There is a spring adjuster to modify the insertion depth when working with particularly harder or softer materials.

T4F Tabs

Pack of 2550 flexible tabs for Picture Framing.

Size 0.4mm x 4.3mm x 15mm

Manufactured from a special pliable steel

T4R Tabs

Pack of 2550 rigid tabs.

Size 0.4mm x 4.3mm x 15mm

Manufactured from a special stiffer steel
