Belt & Disc Sander, 4″ x 6″
6″ Disc Sander with Tilting Table
Mitre Guide Adjustable 60 Degrees Each Way
Horizontal 4″ Wide Belt Sander
Sanding Belt Can Be Used In The Vertical Position With The Work Table Attached
Table Tilts From 90 to 45 Degrees
Open End Of Sanding Belt Can Be Used For Sanding Curves
5 Year Product Guarantee
Belt & Disc Sander, 4" x 6"
6" Disc Sander with Tilting Table
Mitre Guide Adjustable 60 Degrees Each Way
Horizontal 4" Wide Belt Sander
Sanding Belt Can Be Used In The Vertical Position With The Work Table Attached
Table Tilts From 90 to 45 Degrees
Open End Of Sanding Belt Can Be Used For Sanding Curves
5 Year Product Guarantee
PngItem_1279117

Downloads:

BD46 Owners Manual

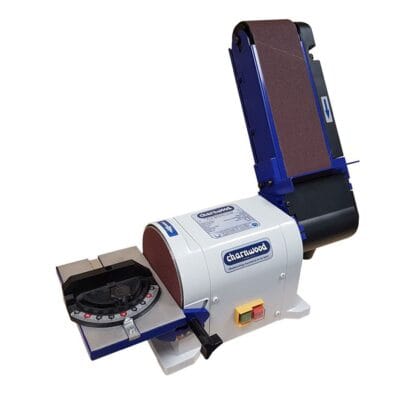

Charnwood Belt & Disc Sander, 4″ x 6″

Product Code:BD46
Barcode: 5060486046867

£169.00 (£140.83 Excl. VAT)

In stock

Product Description

The most popular sized combination sander for the Extractors.

  • 450w Quiet Induction Motor
  • 6″ Diameter Sanding Disc
  • 4″ x 36″ Sanding Belt
  • Vertical or Horizontal Use
  • Tilting Work Table With Mitre Guide
  • Dust Extraction Outlets on Both Functions

The design has been updated and simplified from the traditional belt driven sander. Both the belt & disc functions are powered directly from the motor shaft.

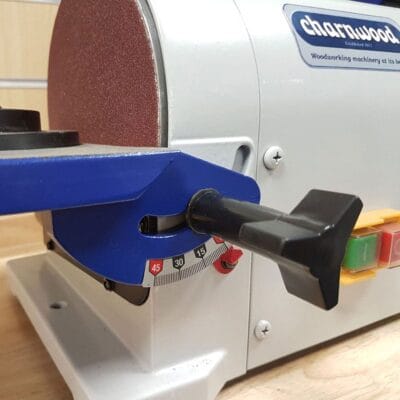

The disc sander side has a 150mm diameter disc complimented by a solid one piece aluminium work table with 45 degree tilt. A mitre guide fits onto a slot in the work table allowing the disc to be used for accurate sanding of square edges as well as bevels, mitres and even compound angles. A dust extraction outlet is provided to connect to a suitable vacuum or extractor.

The sanding belt can be used in horizontal or vertical mode. It can also be locked at any angle in between, sometimes more comfortable for sharpening tools.

When used horizontally for face sanding the belt is fitted with a back stop. This can be quickly removed and replaced with the work table.

The open drum end of the belt can be used for sanding curved edges, cut on a bandsaw or scroll saw.

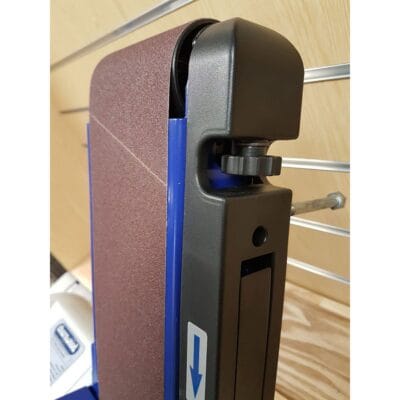

When the time comes to replace the sanding belt there is a quick release tension lever and tracking adjustment to balance the new belt.

The sander sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 2 mounting points provided.

Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.9m power cable & UK 3 pin plug.

SPECIAL OFFER – FREE ACCESSORIES

Unlock the benefits of Hook & Loop sanding discs. For a limited time we are giving away with each machine, worth £8.00:

  • Hook & Loop Conversion Pad VB150
  • 60 grit ProNet sanding disc
  • 80 grit ProNet sanding disc
  • 120 grit ProNet sanding disc
  • 150 grit ProNet sanding disc

These are in addition to the the standard equipment.

Charnwood BD46 Specification

Disc Diameter 150mm (6″)
Disc Speed 2850rpm
Belt Size 100mm x 915mm (4″ x 36″)
Belt Speed 550m/min
Motor (Induction) 240v, 50hz 450w (0.6hp)
Work Table Size 195mm x 35mm
Work Table Tilt 90 to 45 degrees
Work Table Guide Slot 16mm (5/8″)
Dust Extraction Outlet x 2 37mm OD, 31mm ID
Overall Dimensions (WxDxH) 550mm x 530mm x 200mm
Shipping Dimensions 530mm x 580mm x 270mm
Weight 14kg
Assembly Time Required 5 Minutes
Rating Hobby
Product Guarantee 5 Years



We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.
