Charnwood 8” x 5” Bench Top Planer Thicknesser

Product Code:PT200
Barcode: 5060486049189

£399.00 (£332.50 Excl. VAT)

In stock

Product Description

A compact and portable planer thicknesser.

  • 8” Planing Capacity
  • 8” x 5” Thicknessing Capacity
  • Aluminium Tables To Minimise Weight
  • Extruded Guide Fence For Accuracy
  • Tilting Fence With Twin Guides
  • Rubber Coated Feed Rollers

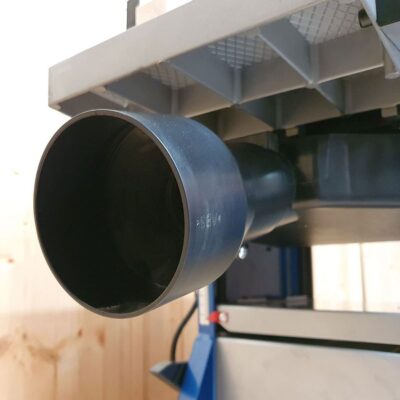

  • 100mm Diameter Chip Extraction Outlet

Light enough to move off the bench when not in use and yet tough enough to produce 8″ x 5″ timber into flat and dimensioned pieces.

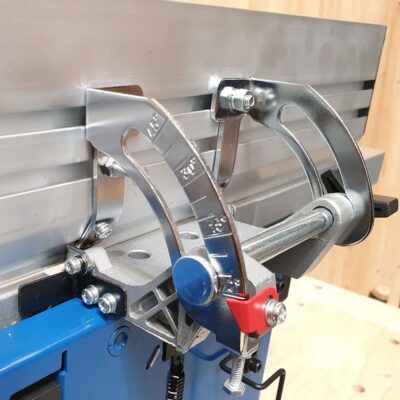

The planing beds are precision ground aluminium and the guide fence is a rigid aluminium extrusion which can be tilted and locked at any angle up to 45 degrees when required.

The steel thicknessing bed has an extension arm on the outfeed side and is supported in each corner by chain driven adjusting screws. Once the height is set, rubber coated feed rollers pass the timber through the high speed cutter block leaving a beautiful finish with no roller marks.

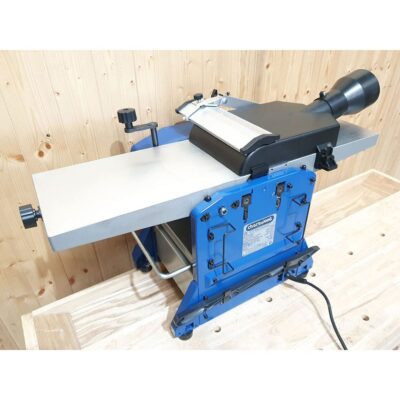

The redesigned dust hood now has a quick action clamp to allow faster removal when changing between Planing and thicknessing modes. The hood fits onto the thicknessing bed during planing operations and is then moved over the top when thicknessing. As a safety feature a location sensor detects that the dust hood has been correctly fitted before allowing the motor to run.

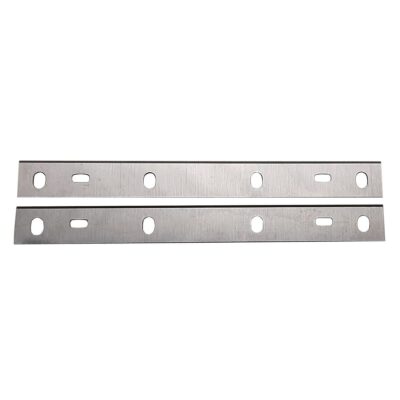

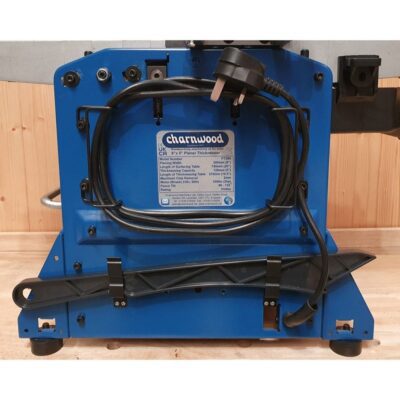

Supplied with re-grindable knives, 63mm & 100mm diameter dust extraction outlets, blade setting tool, 4 adjustable rubber feet, 2.0m power cable and UK 3 pin plug.

Charnwood PT200 Specification

Surfacing width 204mm (8″)
Length of surfacing tables 740mm
Maximum planing depth of cut 2mm
Fence tilt 90 – 45
Table height 360mm
Thicknessing capacity 5 – 125mm (1/4″ – 5″)
Length of thicknessing table 270mm
Feed speed 8m/min
Maximum depth of cut 2mm
Cutterblock speed 9000rpm
Number of knives 2
Motor (carbon brush) 1500w (2hp), 240v
Dimensions (WxDxH) 830mm x 400mm x 460mm
Weight 28kg
Assembly Time Required 5 Minutes
Rating Hobby
Product Guarantee 5 Years



It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
