Charnwood W740 16” Professional Woodworking Bandsaw

Product Code:W740
Barcode: 5060281696199
(1 customer review)

£1,399.00 (£1,165.83 Excl. VAT)

In stock

A large trade rated woodworking bandsaw packed with features you would expect to find on a machine ready for professional use.

  • Cast Iron Wheels
  • 10″ Cutting Depth Capacity
  • 16″ Width Cutting Capacity

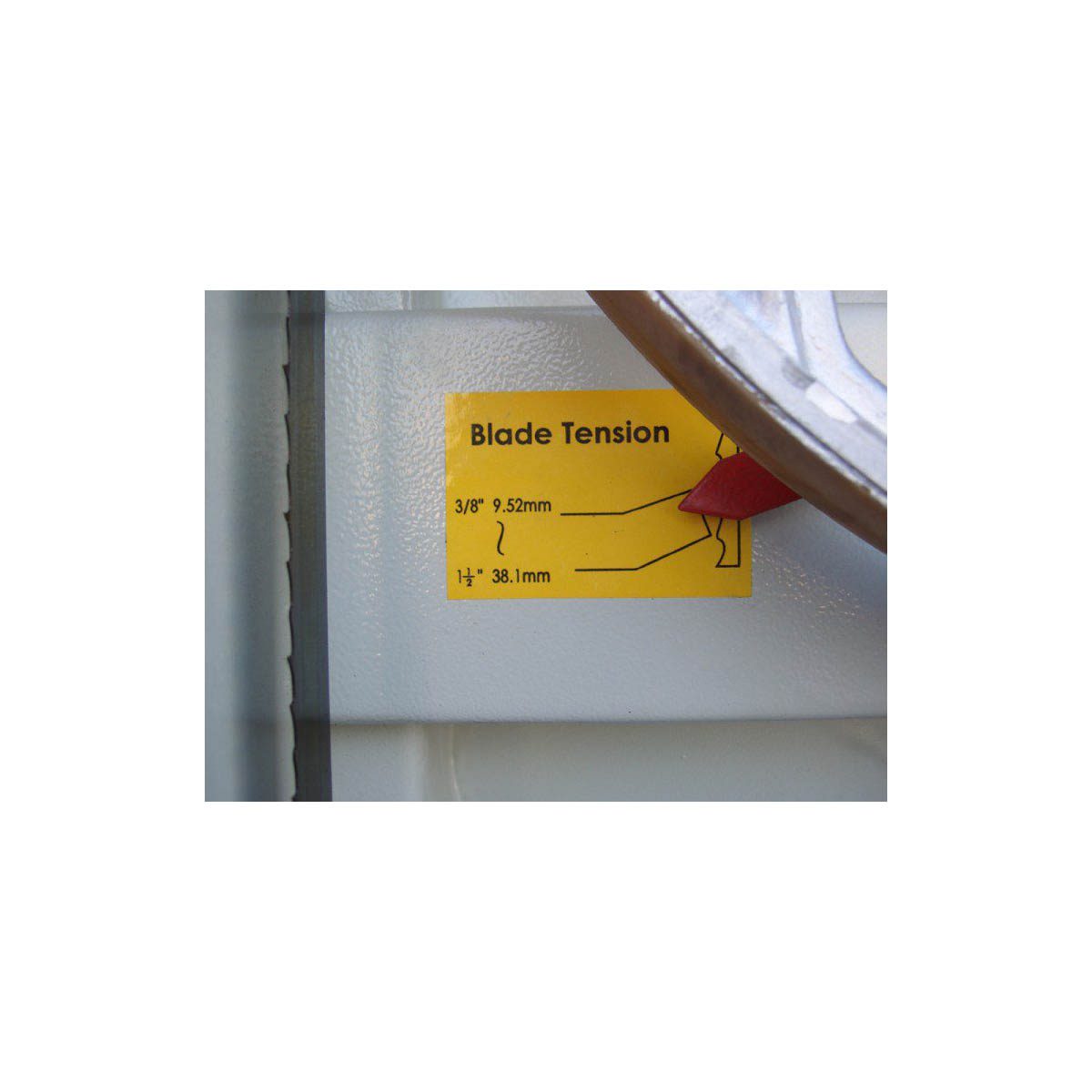

  • Blade Tension Indicator
  • 3hp Induction Motor with Brake
  • Wheel Kit Included

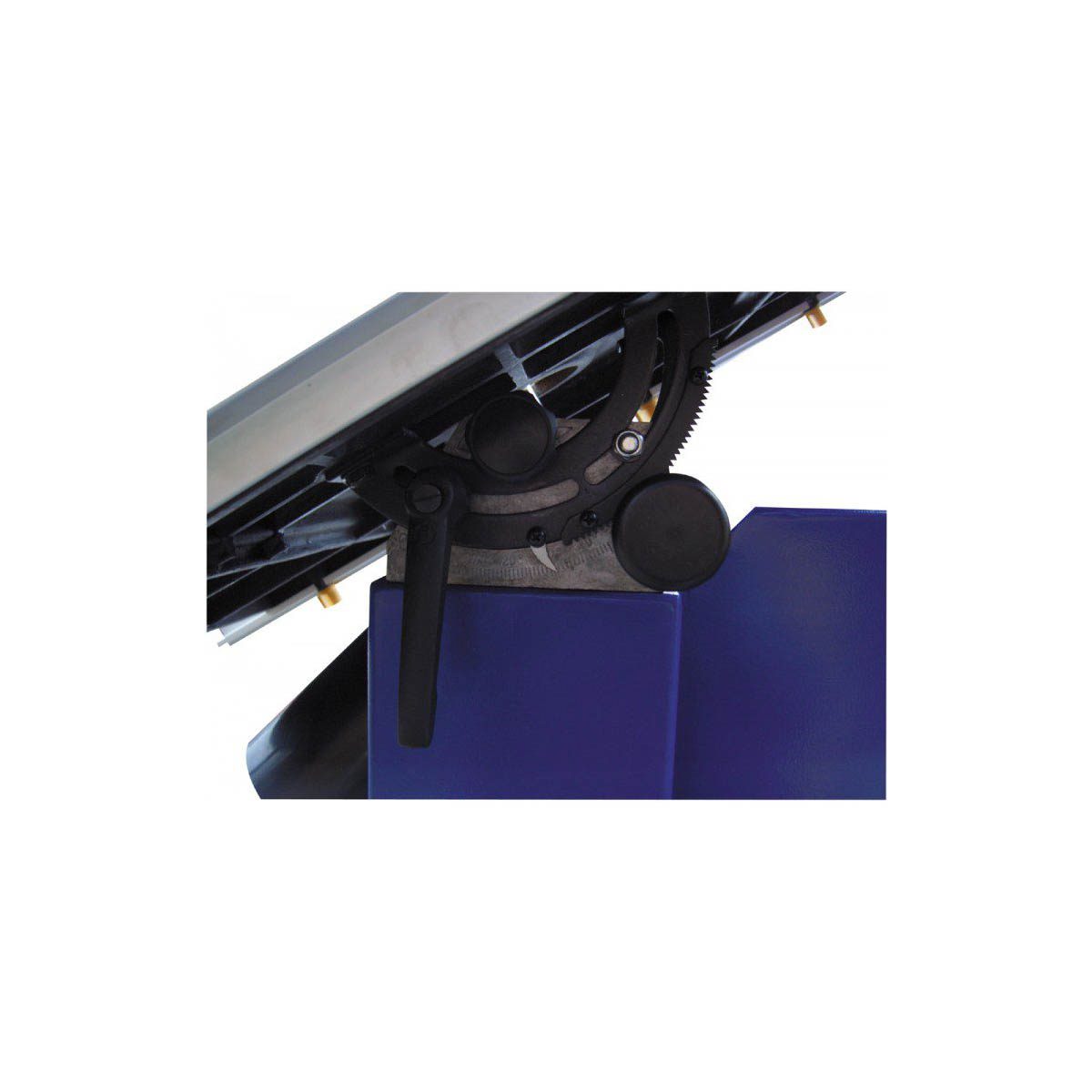

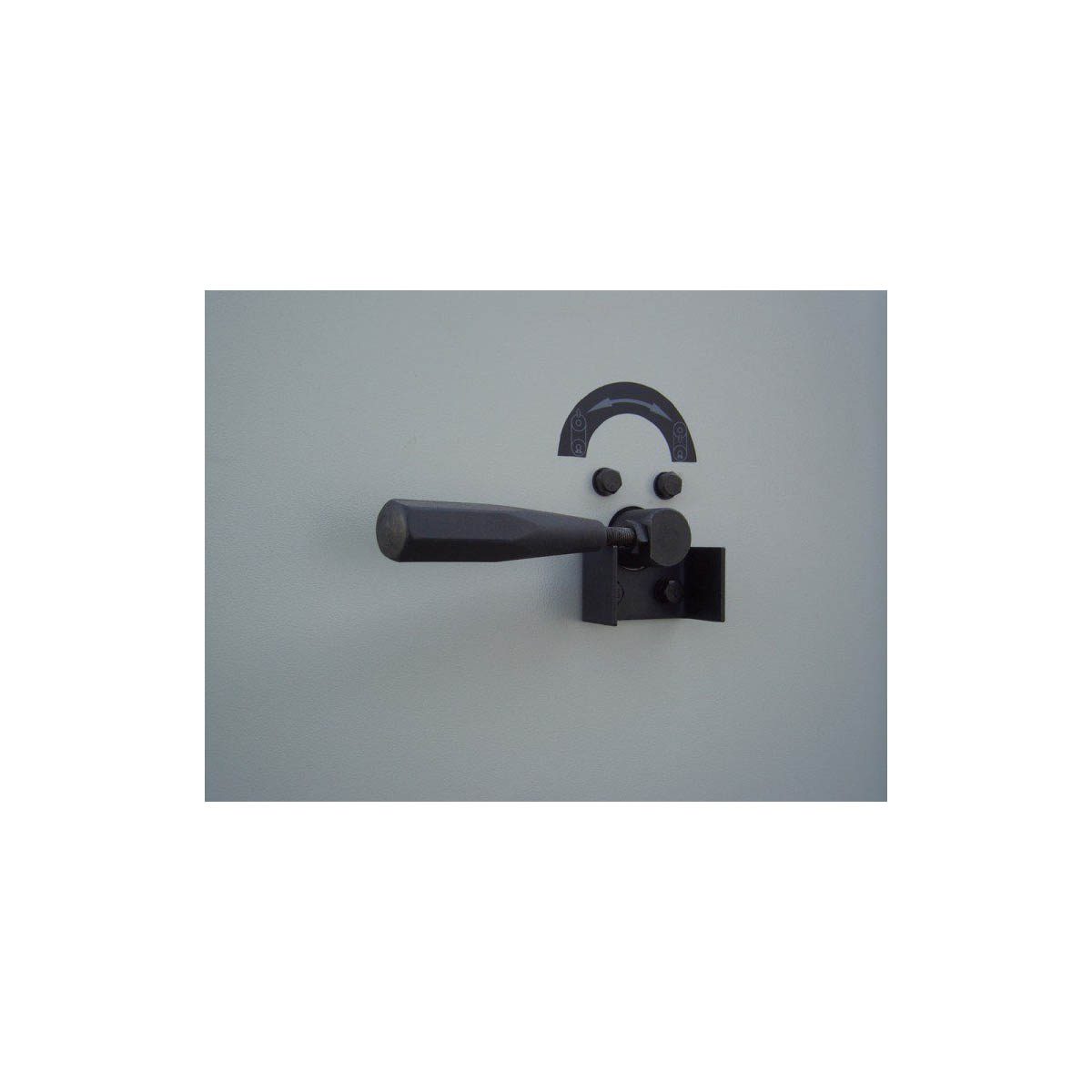

16″ diameter cast iron balanced wheels and a powerful 3hp mechanically braked, induction motor give this bandsaw serious cutting capacities ideal for a production workshop or ambitious woodturner. The angle of the heavy cast iron table is adjusted by a handle at the rear and the work is guided by using either the quick lock rip fence, with a scale in both metric and imperial, or a well made sliding mitre fence for crosscutting. Setting the bandsaw blade tension correctly is made simple with the addition of a quick release lever and a tension indicator. A wheel kit gives the user complete freedom to move the bandsaw around the workshop.

The Charnwood W740 woodworking bandsaw comes supplied with rip fence with micro adjuster, a cast metal sliding mitre guide and fence adjustable 60 degrees each way with preset stops, 25mm woodcutting blade, 2 x 100mm diameter extraction outlets, wheel kit and 2.5m power cable with UK 3 pin plug.

Runs on a standard 13 amp electric supply.


Charnwood W740 Specification

Maximum cutting depth 255mm (10″)
Throat width 410mm (16″)
Max. cutting width with fence 275mm Left / 225mm Right
Table size 560mm x 450mm
Table height 890mm
Table tilt -10 to +45
Mitre Guide T-Slot (x2) 10mm / 16mm
Cutting speed 420 & 840m/min
Motor (induction) Braked 2200w (3hp)
Blade length 3345mm
Blade widths 10-38mm (3/8″ – 1.1/2″)
Assembled Dimensions (WxDxH) 965mm x 800mm x 1760mm
Assembly Time Required 60 Minutes (Needs 2 People)
Weight 150kg
Shipping Crate Dimensions (WxDxH) 530 x 710 x 1900mm
Minimum Door Access Width 500mm
Rating Trade
Product Guarantee 5 Years


The primary use of this bandsaw is for woodworking and the blade supplied is suitable for cutting both hard and soft woods. The blade supplied can also cut Non-ferrous metals, Plastic and Acrylic. It is possible to use this bandsaw for cutting other materials, but only with a suitable blade fitted.
