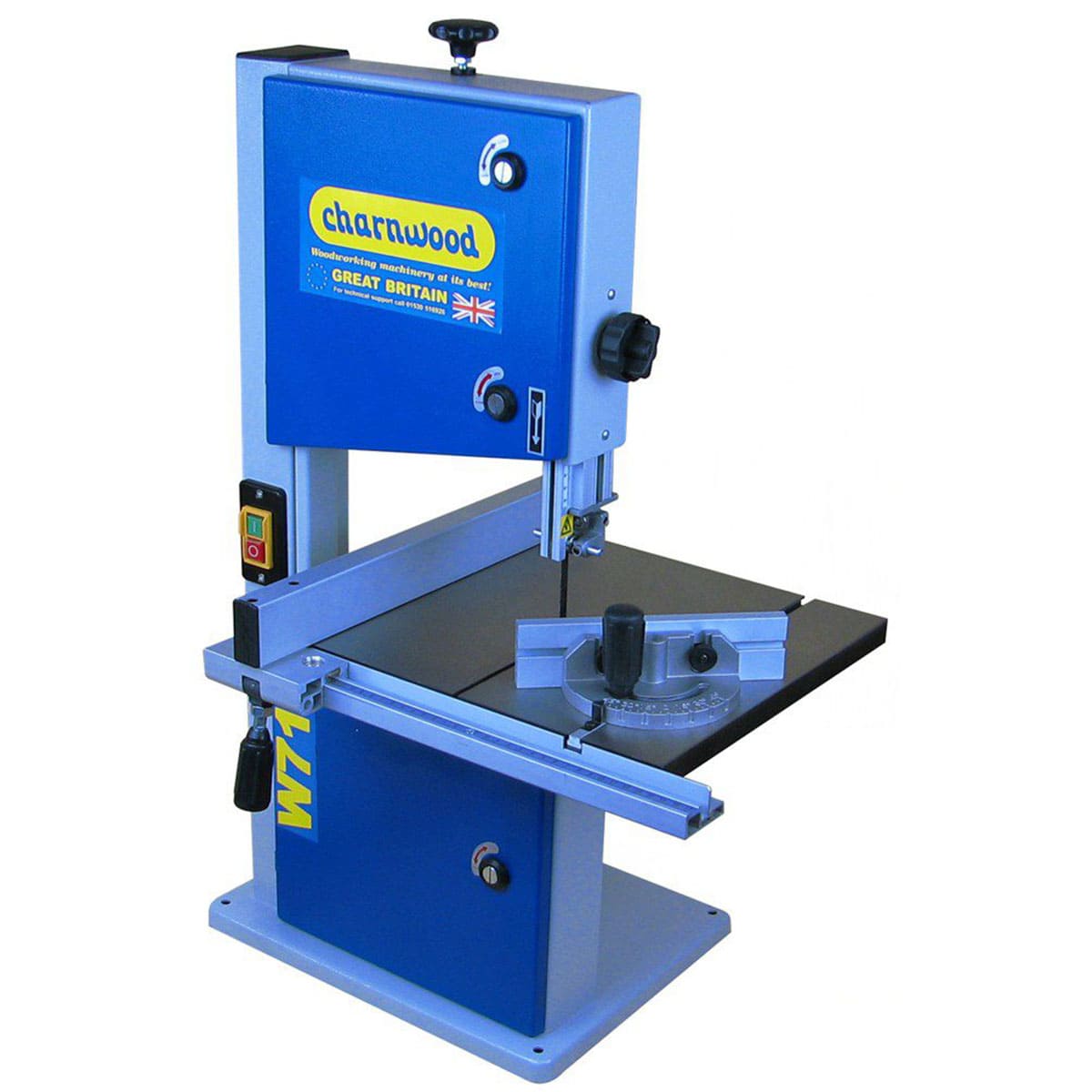

10” Woodworking Bandsaw

Product Code:W715

Product Description

DISCONTINUED OCTOBER 2019

This item is no longer available to order. A limited range of spare parts are still available. Contact our sales office to order.
Any accessories listed in the ‘Related Products’ section below, are still available to order online.



A bench top woodworking bandsaw with a 4” cutting capacity. An ideal companion for woodturners.

  • Precision Ground Cast Iron Work Table
  • Quick Action Locking Rip Fence
  • Quiet Induction Motor
  • Crosscutting Mitre Guide & Fence Included
  • 4” Cutting Depth Capacity
  • 10” Cutting Width (Throat)
  • Supplied with High Quality British Made Blade
  • Primarily used for Woodworking

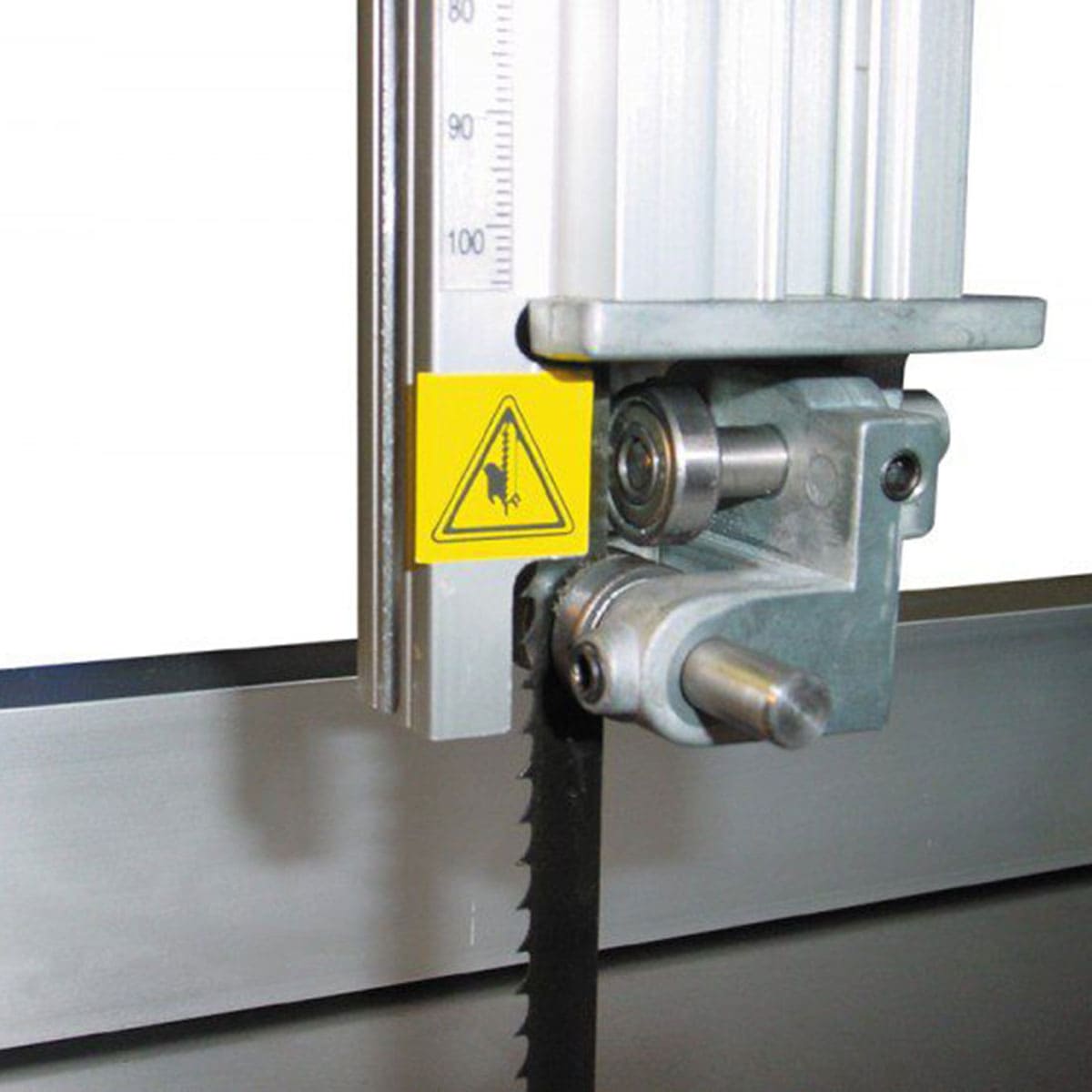

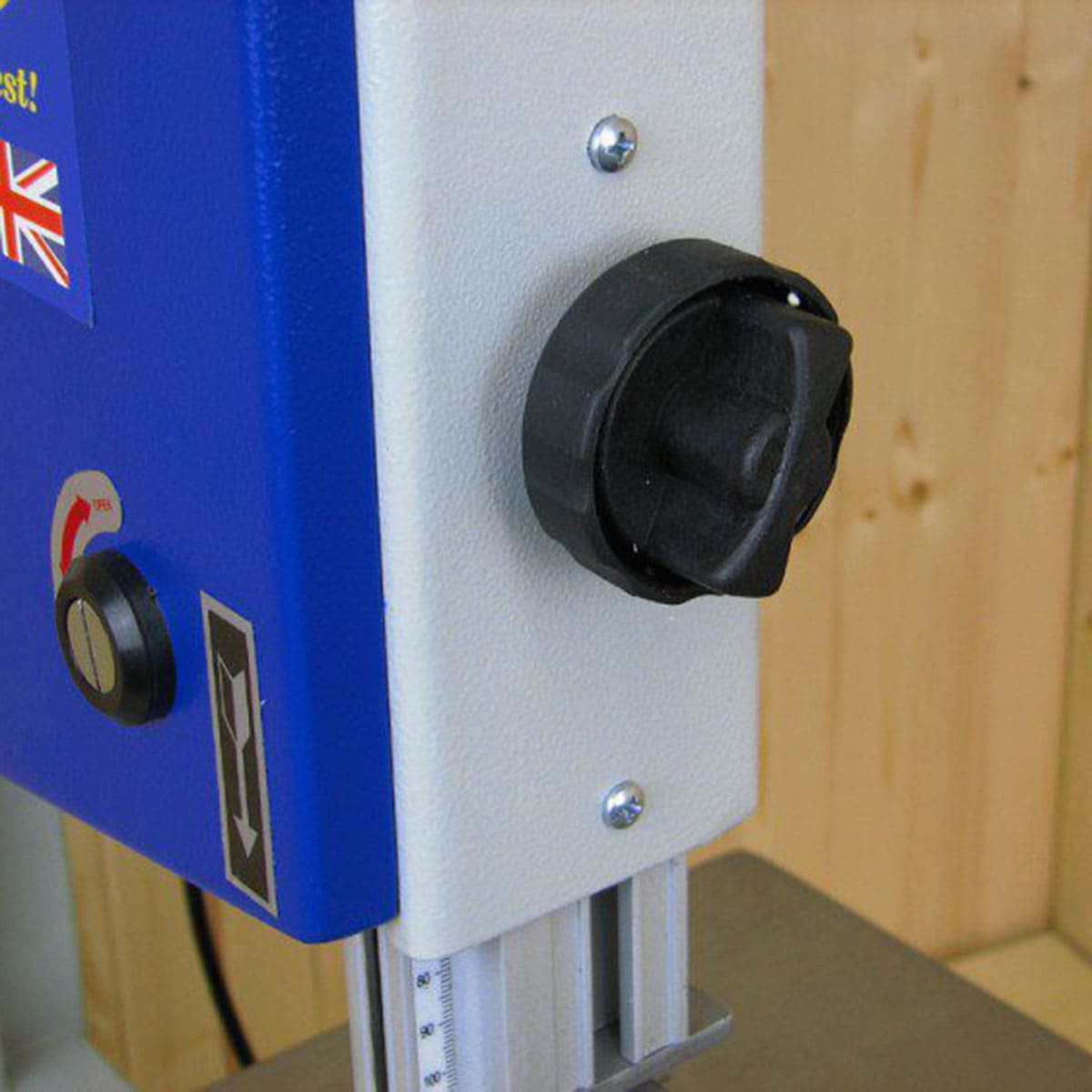

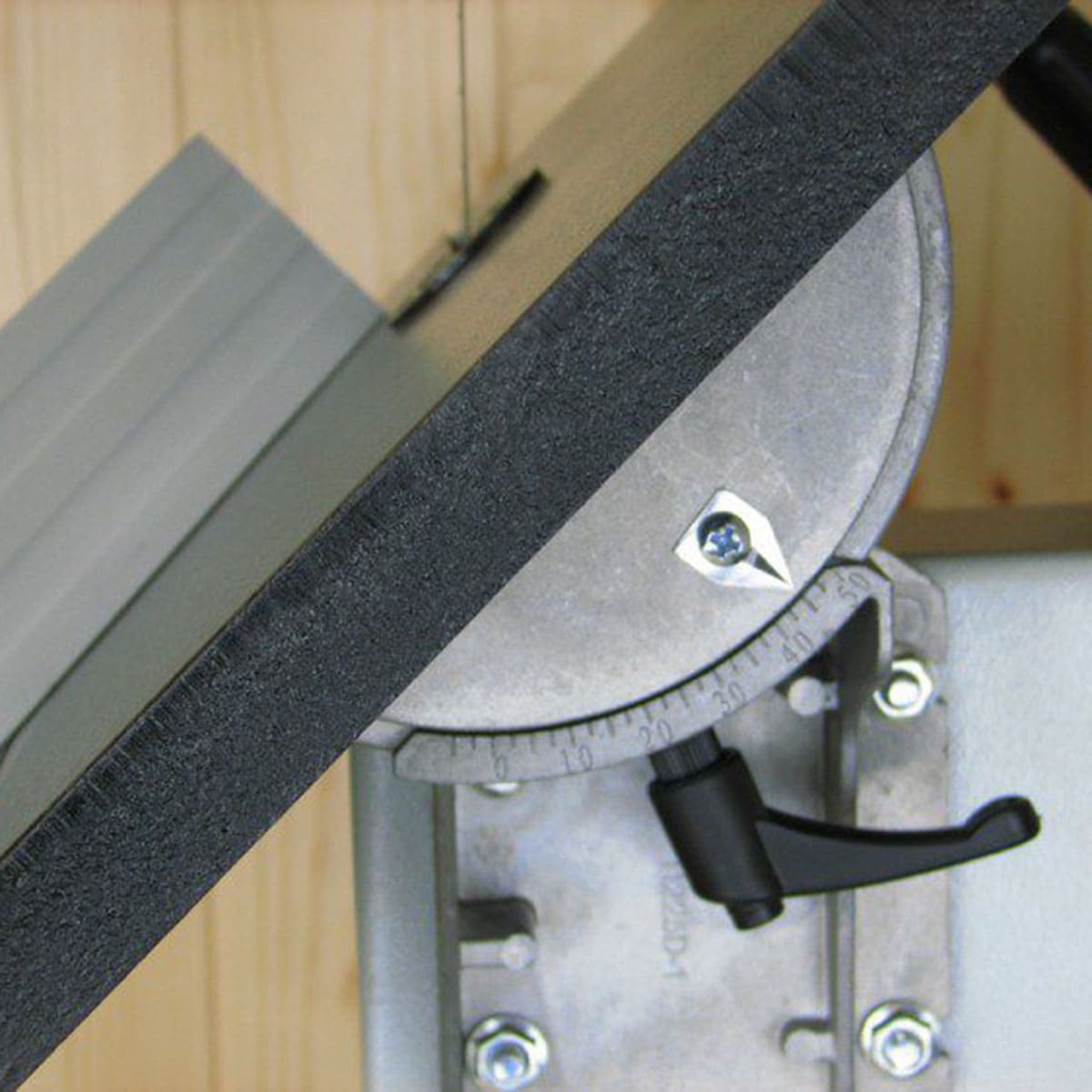

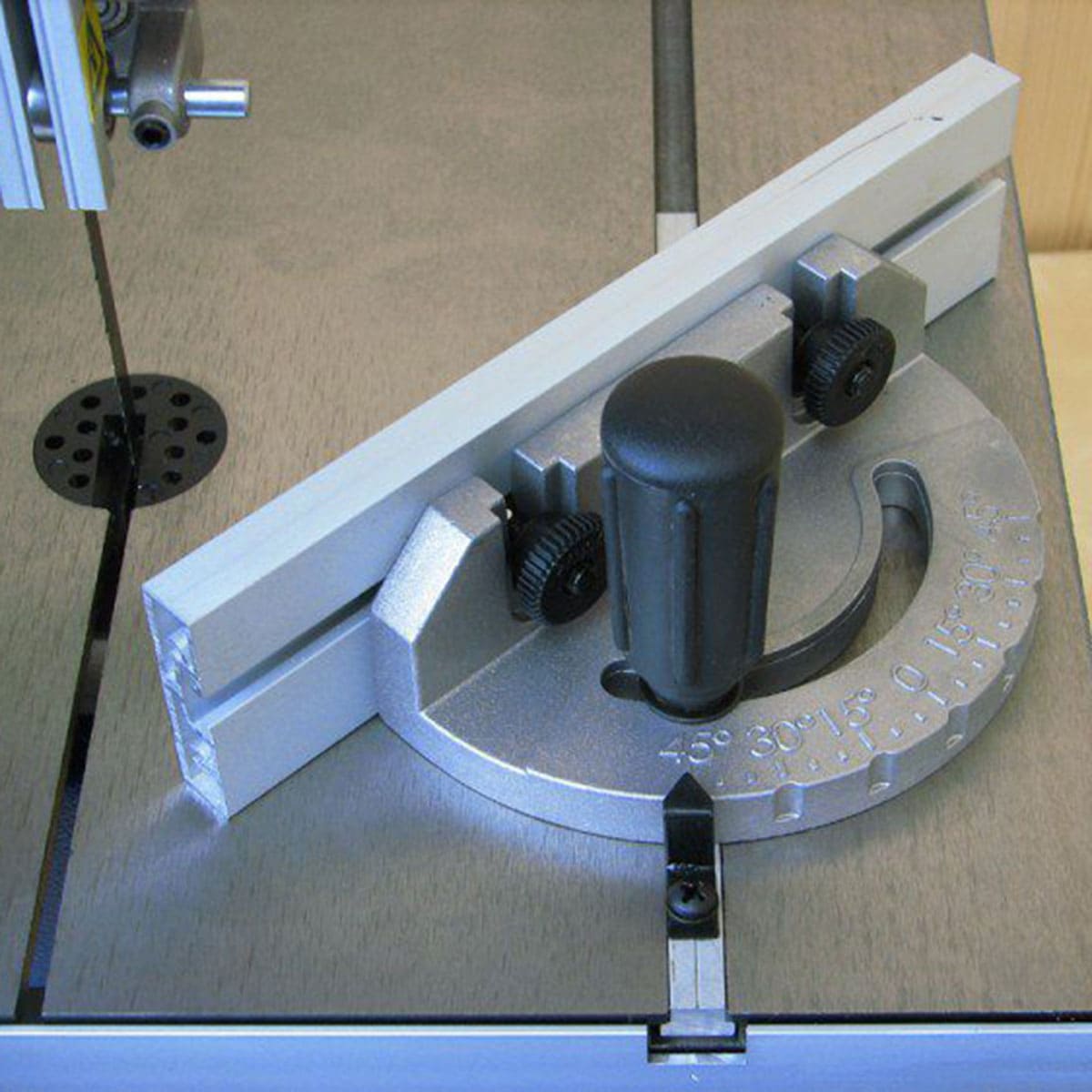

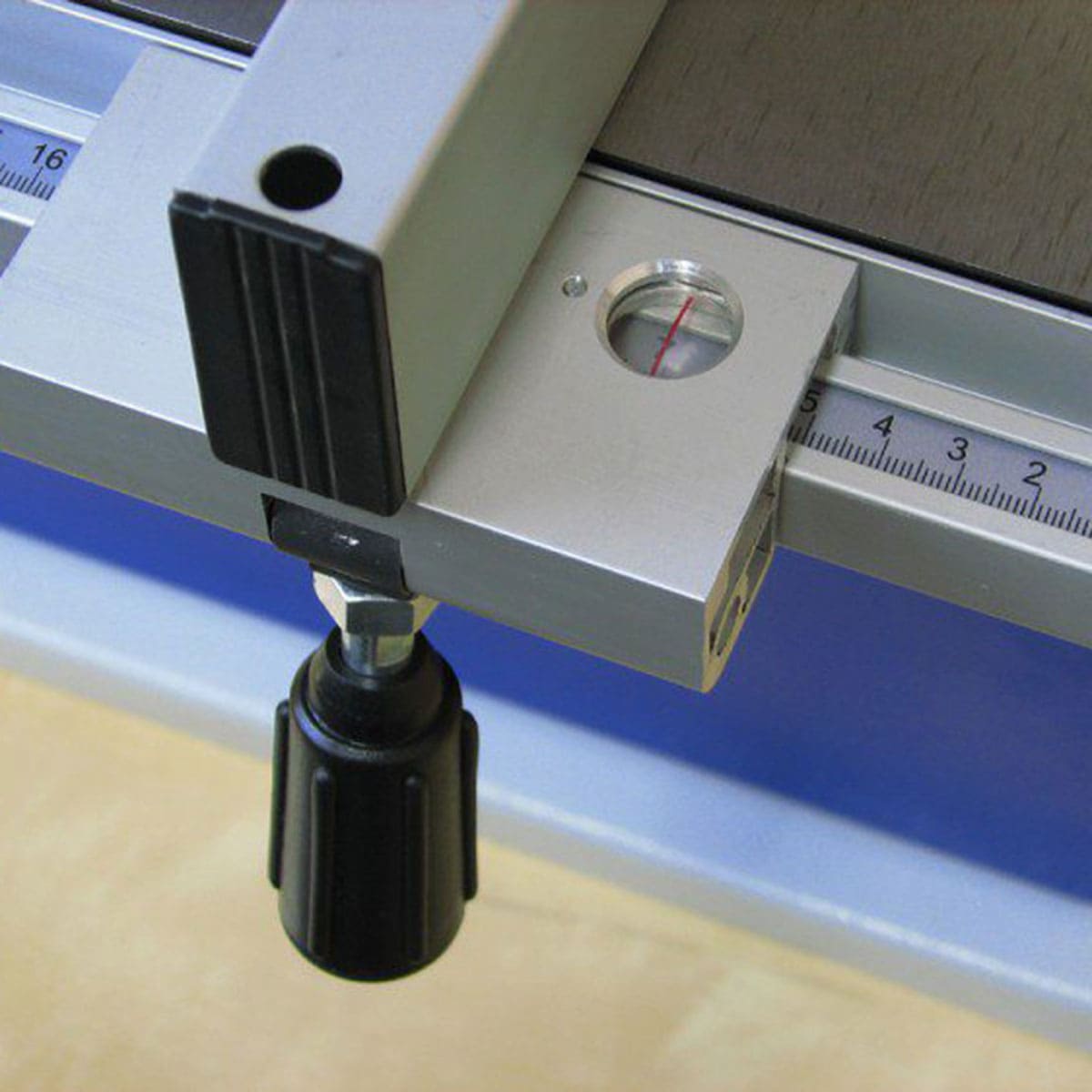

A small sized woodworking bandsaw with a durable precision ground cast iron tilting table with a stop for returning to 90 degrees, after a bevel cut, and T shaped mitre fence slot. The quick release fence locks securely onto the front rail of the table to provide a rigid straight guide for ripping. A magnifier is included to aid accurate setting of the fence along the scale, marked out in mm. The sliding mitre fence is adjustable for crosscutting wood at any angle. The new rack & pinion blade guard design is adjusted by using a dial on the side of the machine and is fitted with a scale to set the cutting height. Two side guide bearings and a rear thrust bearing on the end of the guard, control the bandsaw blade and keep the cut true. Finished off with a durable powder coated paint finish.

Supplied with rip fence, mitre fence adjustable 45 degrees each way, 3/8″ high quality British made blade, NVR switch, 40mm diameter extraction outlet, cable and plug.

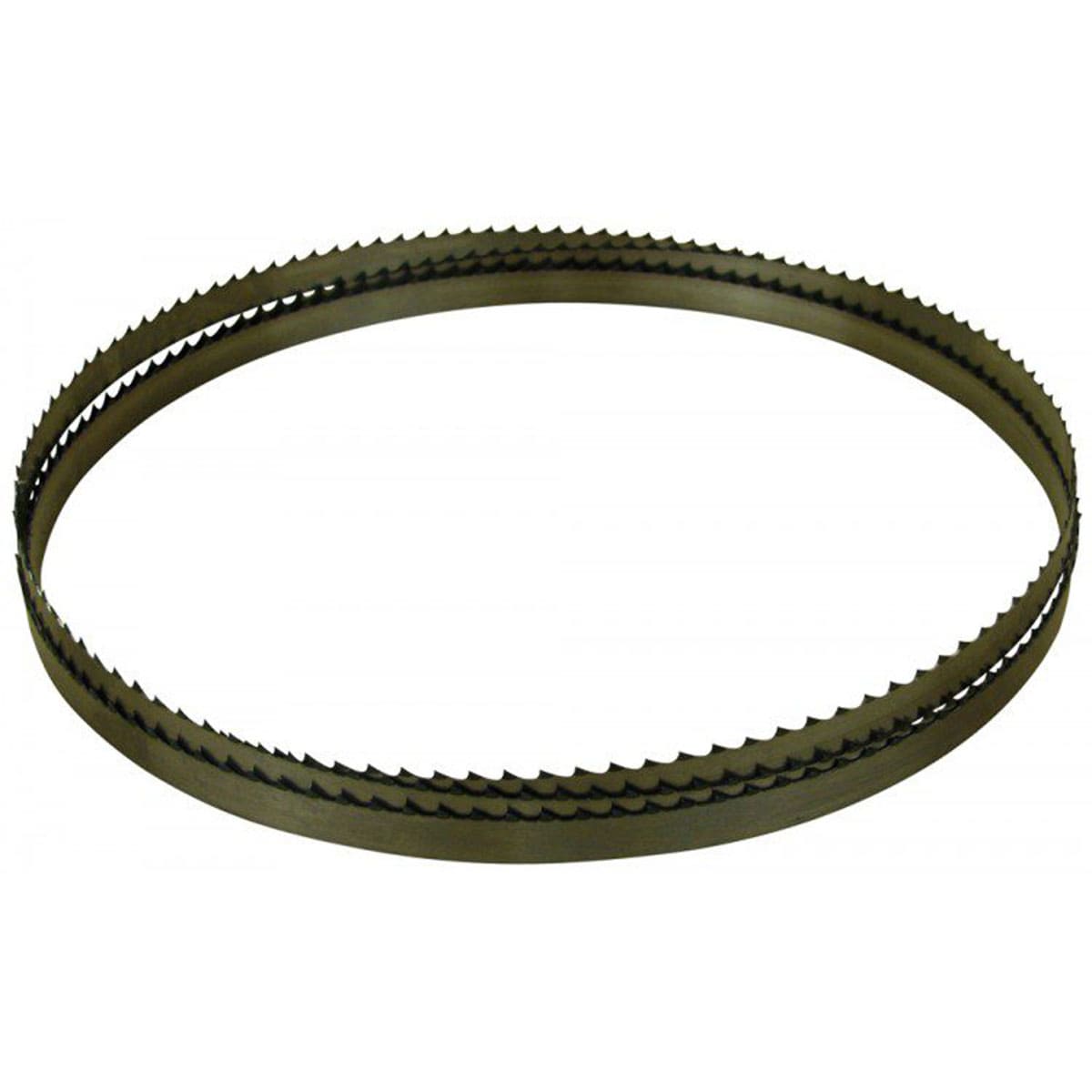

This Bandsaw is fitted with a High Quality, British manufactured blade with precision ground teeth for incredible cutting results.

Specification

Maximum cutting depth 100mm (4″)
Throat width 250mm (10″)
Max. cutting width with fence 100mm Left / 115mm Right
Table size 340mm x 335mm
Table tilt 0-45 degrees
Mitre Guide T-Slot 9mm / 14mm
Cutting speed 800m/min
Motor (induction) 375w (1/2hp)
Blade length 1712mm
Blade widths 6-12mm (1/4″ – 1/2″)
Dimensions (WxDxH) 400mm x 520mm x 840mm
Weight 30Kg
Assembly Time Required 25 Minutes
Rating Hobby
Warranty 1 Year

The primary use of this bandsaw is for woodworking and the blade supplied is suitable for cutting both hard and soft woods. It is possible to use this bandsaw for cutting metal, but only with the correct blade fitted. (Not supplied)
