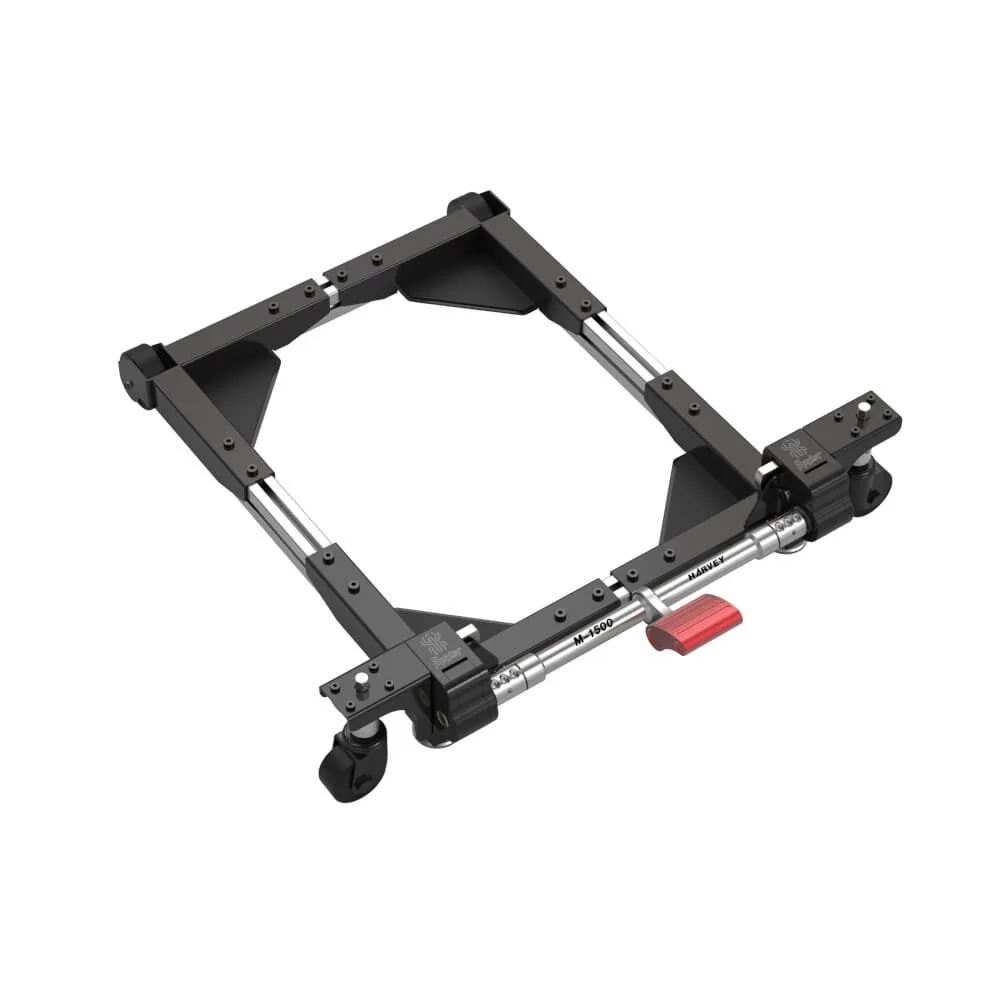

Harvey M-1500 Spider Wheel Base

For woodworkers, optimizing workspace is crucial, but the challenge of moving heavy equipment often hinders this goal. Introducing the Harvey Spider Mobile Base, an innovative solution that streamlines the movement and precise positioning of even the largest tools. With this revolutionary base, you can maximize space utilization, creating limitless layout possibilities and elevating your woodworking experience.

Revolutionary ‘QuadSteady’ Stability System

The M-1500 Spider-Mobile Base features the innovative ‘QuadSteady Stability System’ within each leg.

With four independent support legs with spring assistance, this system adapts to uneven surfaces and terrain upon contact, offering exceptional stability on various surfaces.

Consistent Tabletop Height

Using a typical mobile base on the market can lead to challenges, especially if the equipment has support legs. Each time you raise or lower the mobile base, the equipment tabletop on the base adjusts its height accordingly. This variability can disrupt your precise settings and increases the risk of tools, not securely anchored, tumbling off the tabletop. Moreover, when the height changes, the machine’s unsupported legs can dangerously tilt to the side.

The M-1500 effectively eliminates these issues with its innovative ‘QuadSteady’ Stability System. With this system, the swivel casters maintain constant contact with the ground whether the base support legs are being raised or lowered, thereby keeping the tabletop height consistent.

This stability ensures the accuracy of your operations, prevents any accidental drops of tools, and avoids the dangerous side tilting of the machine legs.

The fixed legs enhance the static friction up to 916N, ensuring maximum stability during use. (It’s calculated based on a friction coefficient of 0.8 between the legs and cement floor)

Magic Spinning with Swivel Casters

In cramped woodworking shops, using a typical mobile base often means that moving large equipment requires multiple adjustments.

The M-1500 revolutionizes this process with two swivel casters, allowing smooth spinning and turning in any direction, even U-turns in narrow spaces.

Additionally, the ability to smoothly shift and retrieve equipment at any angle enhances its flexibility and accessibility in tight spaces.

One-Foot Control for Quick Stop and Go

The M-1500 base uses an innovative linkage design. A light step on the foot pedal raises or lowers all four-foot pads simultaneously, positioning the equipment.

This design ensures consistent user stepping force, regardless of equipment weight, simplifying operations and boosting work efficiency.

Adjustable Base Size for High Versatility

Length 530mm – 760mm

Width 420mm – 650mm

The adjustable base size of the M-1500 accommodates different equipment bases, offering extreme versatility.

Premium Materials for Exceptional Load-Bearing Capacity

Constructed with high-quality aluminium alloy and stainless steel, the M-1500 boasts excellent rust and wear resistance, efficiently bearing loads up to 1500 lbs (680 kg).

Optional Accessory

M-1500E Extension Kit for Machines with Support Feet

Designed specifically for machines with additional support feet or legs (e.g., table saws), the M-1500E Extension Kit provides seamless movement.

Length 700mm – 1166mm

Width 470mm – 700mm
